GMB-AQ47001 産業用マザーボード / ATX / Intel 10th Gen. Processors (Comet Lake-S + Q470E) / (LGA1200) / 2x PCIe (x16), 3x PCIe (x4), 2x PCI

• 概要・特長
• 機能・仕様
• 価格・オプション
• サポート・ダウンロード

概要・特長

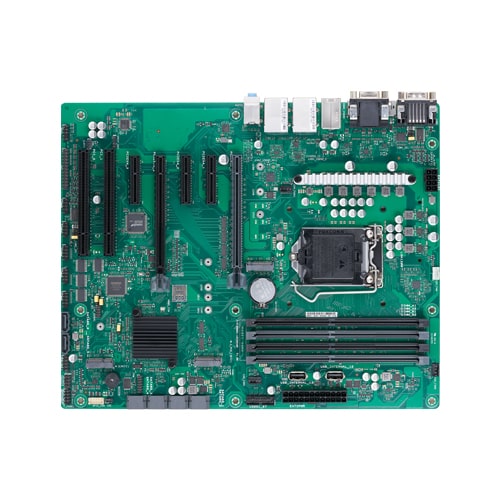

GMB-AQ47001 is based on Intel® Q470E chipset and Desktop processors including Intel® 10 th Gen Core® i3/i5/i7 SKU. This board supports DDR4, PCIe 3.0, and SATAIII. Those features help you to build high performance and stabile system.

適用例

• Intel® 10th Comet Lake-S Platform

  • This product is equipped with the 10th generation Intel® Core™ Pentium® Celeron® processors. Adopting embedded-type CPU contributes to a stable supply as below list. Following CPUs are recommended for customer reference; Intel® Core™ i9 / i7 / i5 /i3 Pentium® Celeron® processors
    CPU Selection Guide (Non-ECC memory supported):
    Intel Core i9-10900E
    Intel Core i9-10900TE
    Intel Core i7-10700E
    Intel Core i7-10700TE
    Intel Core i5-10500E
    Intel Core i5-10500TE
    Intel Core i3-10100E
    Intel Core i3-10100TE
    Intel Pentium Gold G6400E
    Intel Pentium Gold G6400TE
    Intel Celeron G5900E
    Intel Celeron G5900TE
• High expandability for Vision application

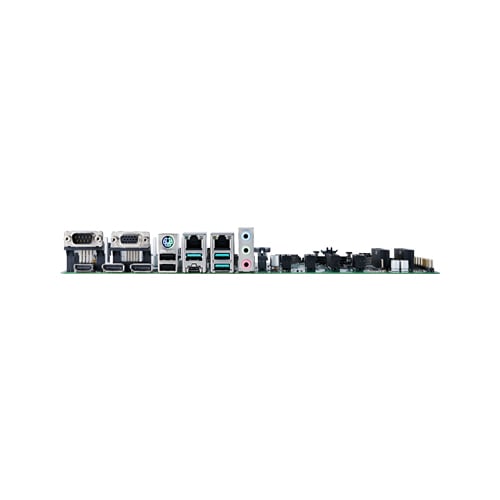

  • This product is equipped with a variety of interfaces such as serial port, USB3.2/2.0, 8-bit GPIO, Audio jack, Line-out/Mic-in, Giga LAN, HDMI, ect. for customers with various needs. It also provides high expandability such as M.2 Key M/Key B/Key E, 2x PCIe x16 sltos(1x 16 mode / 2x 8 mode), 3x PCIe x4 slots and 2x PCI slots for for vision application.
• 4 displays Supported

  • Supports output of the VGA, Dual DisplayPort, and HDMI.
• Dual Gigabit Ethernet

  • The product has 2 RJ45 connectors on rear I/O for customer usage, which are Intel® I225V + Intel® I219LM chip.
