GMB-IQ67010 産業用マザーボード / Mini-ITX / Intel 13th Gen. Processors (Raptor Lake-S + Q670E) / (LGA1700) / 1 x PCIe Gen.3 (x16) or 2 x PCIe Gen.3 (x8)

• 概要・特長
• 機能・仕様
• 価格・オプション
• サポート・ダウンロード

概要・特長

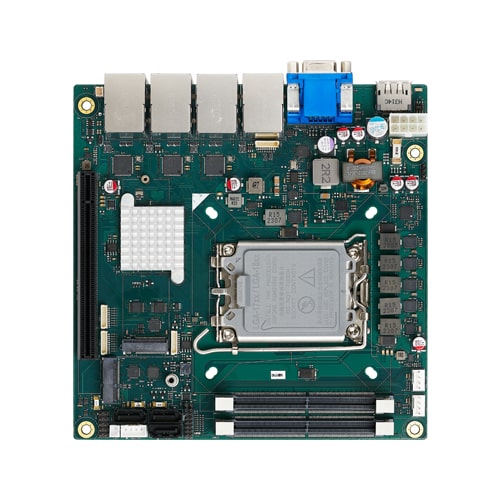

This product is a Mini-ITX form factor industrial mainboard which based on Intel® 12th / 13th / 14th Gen Core™ Processors CPU in LGA1700 socket technology with energy efficient architecture. GMB-IQ67010 adopts two DDR5 SO-DIMM sockets and supports up to 64GB memory. The low-profile SKU solutions are suitable for factory automation applications. Moreover, with the high performance and high-end specifications, GMB-IQ67010 is our first new platform architecture on Mini-ITX product line.

• Intel® 12th/ 13th/ 14th Alder Lake / Raptor Lake / Bartlett Lake-S Platform

  • This product is equipped with the 12th / 13th / 14th generation Intel® Core, Pentium® & Celeron® processors. Adopting embedded-type CPU contributes to a stable supply. The following CPUs are recommended for customer reference. Intel® Pentium® & Celeron® T/TE SKU Intel® Core™ i7 / i5 /i3 supports 35/ 65W TDP SKU
• Multi Display Supported

  • Dual Display port support 4K independent displays One VGA Connector resolution up to 1920x1080 faster in performance with enhanced Intel® graphics engine Intel® UHD Graphics 770/730/710 support by processor SKU
• Quad Gigabit Ethernet

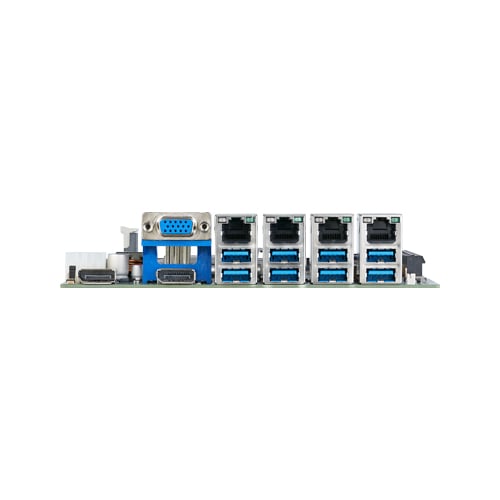

  • The product has 4x RJ45 connectors on rear I/O for customer usage, which are 1 x Intel® I219-LM + 3 x Intel® I210-AT PCIe chip.
• Extend Peripherals Freely Rich Interface

  • This product is equipped with a variety of interfaces such as serial port, USB 3.2/ 2.0, 8-bit GPIO, audio jack, Line-out, M.2 Key E/ Key M, etc. For customers with various needs.
