GMB-IRPL 産業用マザーボード - Mini-ITX / Intel 13th Gen. Core processors (Raptor Lake-P) / 1x PCIe(x4)

• 概要・特長
• 機能・仕様
• 価格・オプション
• サポート・ダウンロード

概要・特長

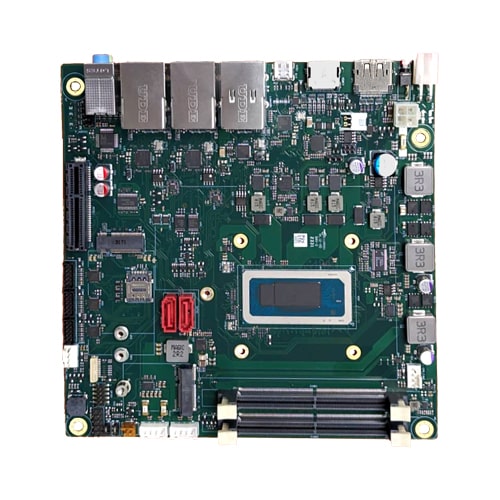

This product is a Mini-ITX form factor industrial mainboard which based on Intel Core Processors that offer 14nm Hi-K process technology with energy efficient architecture. GMB-IRPL Series adopts two DDR5-4800MHz SO-DIMM sockets and supports up to 32GB memory. Moreover, with the high performance of the Intel UHD Graphics and provides one HDMI, one DP, one eDP port in support of triple displays. This feature can be widely applied in various fields, such as production monitoring, medical, healthcare, point of sale and social infrastructure.

• Intel® 13th Raptor Lake-P Platform

  • This product is equipped with the 13 th generation Intel® Core™ processors. Adopting embedded-type CPU contributes to a stable supply. Following CPUs are recommended for customer reference. Intel® Core™ i7 / i5 / i3 up to 28W TDP.
• Triple Gigabit Ethernet

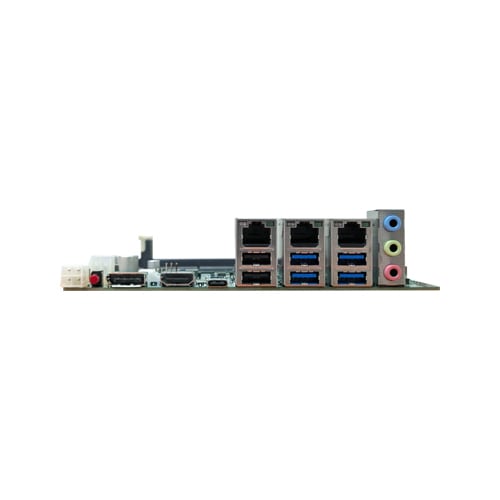

  • The product has 3 RJ45 connectors on rear I/O for customer usage, which are 1 x Intel®i219LM + 2 x Intel® i226IT PCIe chip.
• Extend Peripherals Freely Rich Interface

  • This product is equipped with a variety of interfaces such as serial port, USB 3.2/ 2.0, 8-bit GPIO, M.2 Key E/Key B, LAN, HDMI, etc. For customers with various.
• Supported Build-In TPM2.0

  • The TPM(Trusted Platform Module) provides tools to securely generate keys, customers can purchase TPM2.0 modules that include remote authentication and sealed storage from commercial products based on their own needs and cost considerations.
