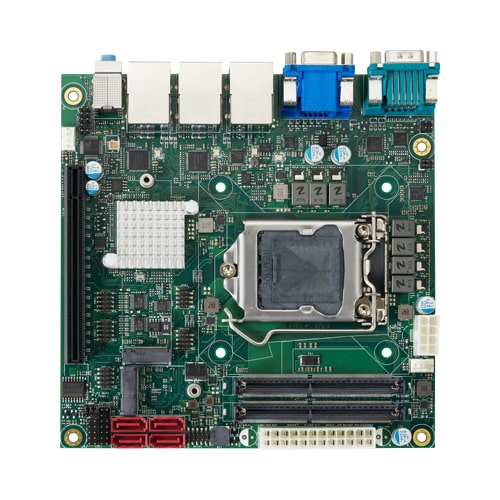

GMB-IW48000 産業用マザーボード / Mini-ITX / Intel 10th Gen. Xeon W-1290E (Comet Lake-S + W480E) / 1x PCIe(x16) Expansion Slot

• 概要・特長
• 機能・仕様
• 価格・オプション
• サポート・ダウンロード

概要・特長

GMB-IW48000 MB supports up to 64GB DDR4-2666 SO-DIMM with ECC available to detect and repair errors that cause data corruption and system crashes. Moreover, software RAID (Redundant Array of Independence Disks) function is supported to ensure data security and backup requirements. The Product up to 10 cores and 20 threads for improved throughput, LGA 1200 socket scalability, embedded use conditions, and long-term product availability, 10th Gen Intel Core processors provide a solid foundation for IoT platforms.

• Better performance and protection

  • GMB-IW4800 design base on Comet Lake-S platform features up to 10 cores, hyper threading on all models, single-core turbo boost up to 5.3GHz which is 300MHz higher, all-core turbo boost up to 4.9 GHz, DDR4-2933 memory support for the i7 and i9, and DDR4-2666 for i3, and also 10th Gen Intel® Core™ i3 and Intel Xeon W-1200E Series processors include error-correcting code (ECC) capabilities
    ECC memory supported
    Intel Xeon® W-1290E/W-1290TE
    Intel Xeon® W-1270E/W-1270TE
    Intel Xeon® W-1250E/W-1250TE
    Intel® Core™ i3-10100E/10100TE
    Non-ECC memory supported
    Intel® Core™ i9-10900E/10900TE
    Intel® Core™ i7-10700E/10700TE
    Intel® Core™ i5-10500E/10500TE

• Media & Display Features for Premium 4K Content Support

  • Support for three simultaneous, independent displays Edge devices with a 10th Gen Intel Core processor inside have three external device driver interface (DDI) ports, allowing you to connect to up to three different 4K displays. Each DDI port includes built-in high-bandwidth digital content protection to help you defend data in transit against breaches.
• Software RAID available

  • GMB-IW48000 build-in 4 SATA connector support RAID 0, 1 ,5,10 level function. When connecting 2 to 4 HDD or SSD storage device allows customers to expand the capacity and do storage devices maintenance easily. Moreover, the RAID function can guarantee data security and fulfill backup requirement.
• Expansion Slot & Extend Peripherals Rich Interface

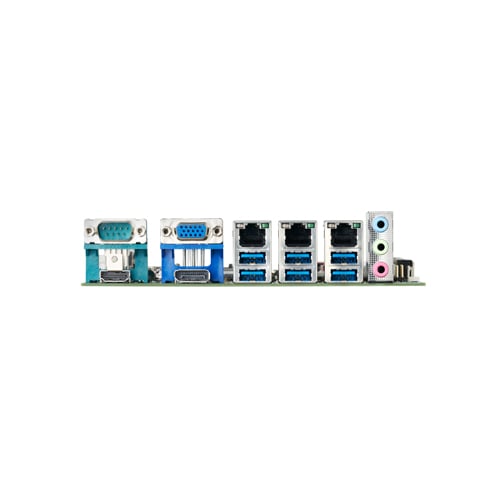

  • This product has 3 kinds expansion slots, M.2 key M 2242 and full-sized PCIe x16, as well as interfaces includes VGA, DisplayPort, HDMI, 1000BASE-T × 3, USB3.2 Gen 2 × 6, USB2.0 × 4, serial (RS-232C) × 3, serial (RS-232C/422/485) × 1.
• Manageability at the edge

  • GMB-IW48000 with Intel® Active Management Technology (Intel® AMT), a feature of the Intel vPro® platform, enables IT to access, maintain, and manage edge devices that are off-site or difficult to physically access—even when the device, hardware, or operating system are powered off or malfunctioning.
