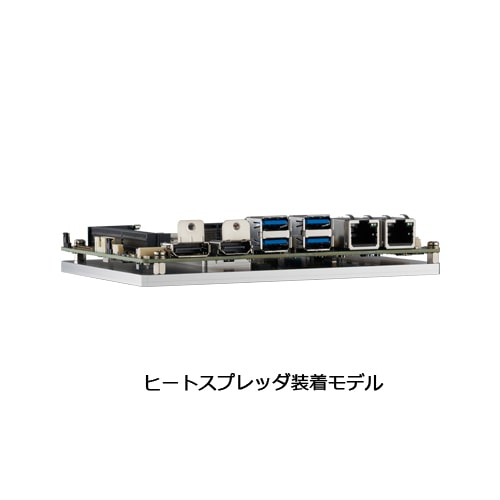

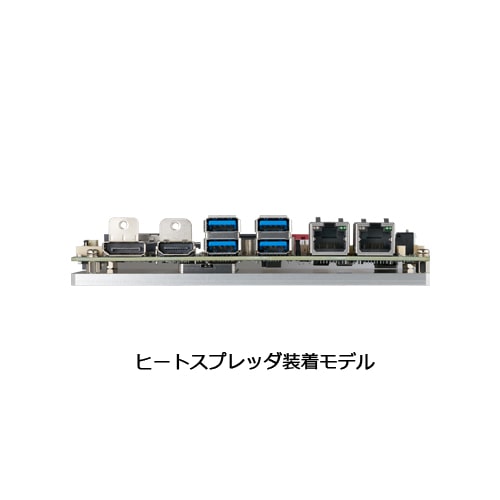

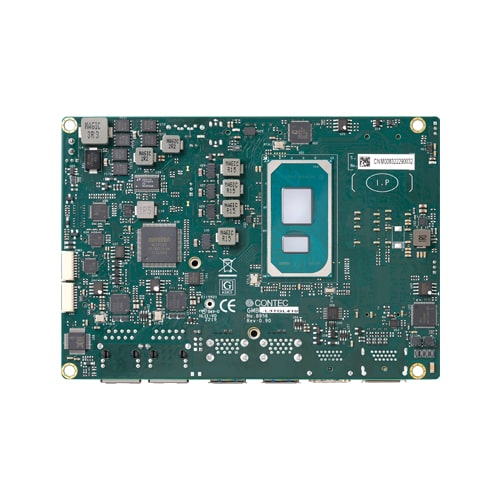

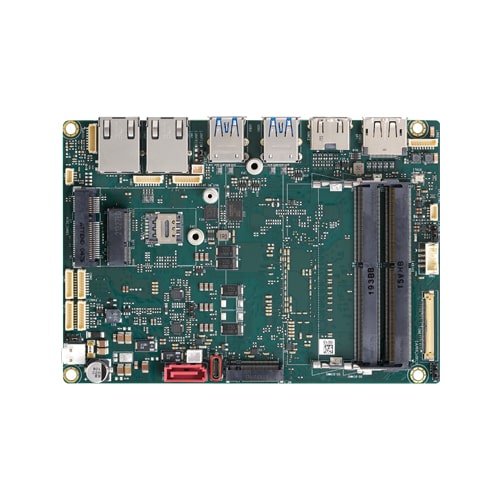

This product is a 3.5-Inch form factor industrial mainboard which based on Intel® Tiger Lake-UP3 Processor Core™ i3-1115G4E / i5-1145G7E/ i7-1185G7E with Windows 10 IoT Enterprise 2021 (4 languages) supported.The industrial-grade GMB-L3TGL210/310/410, with size of 146mm x 102mm, has high computing power, triple-display capability, and various expansion slots make it well-suited for factory automation, intelligent transportation, digital signage, self-service kiosks, and medical applications. The Product supports two 260-pin DDR4-3200 SO-DIMM socket for up to 64GB of memory. To meet customer various needs, it also equipped with one Full-sized Mini PCIe slot with SIM socket. In addition, M.2 M key with mSATA support, and M.2 E key for wireless LAN require, it utilizes Intel® Iris® Xe Graphics to provide and feature triple-display capability through HDMI, DisplayPort and LVDS interfaces which enable multi-display in a limited space. Moreover, it has one RS-232/422/485 port, two RS-232 ports, total 3 ethernet ports with Intel controllers, four USB3.2 ports, two USB2.0 ports, audio interface (Mic-in and Line-out), one 4-bit GPIO port, one HDMI, one DisplayPort, and one LVDS port. The product can operates in temperature range from 0°C to 60°C and has +12~24V DC power supply input.
Medical application
Factory automation
Self-service kiosks
Digital signage
