GMB-MQ37000 Industrial Motherboard / Micro ATX / Intel 8th Gen. (Coffee Lake + Q370) / 1x PCIe(x16), 2x PCIe(x4), 1x PCI

• 概要・特長
• 機能・仕様
• 価格・オプション
• サポート・ダウンロード

概要・特長

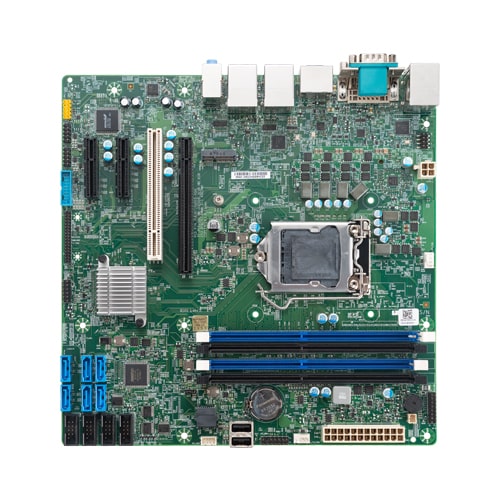

This product is a micro-ATX form factor industrial motherboard which based on Intel® Core™ Processors that offer 14nm Hi-K process technology with energy efficient architecture. GMB-MQ37000 adopts four DDR4 SO-DIMM sockets and supports up to 64GB memory.
Server SKU and Desktop SKU solutions are suitable for factory automation applications. Moreover, with the high performance and high-end specifications, GMB-MQ37000 is our first Coffee Lake generation architecture on Micro-ATX product line.

• Support Intel® 8th Gen. Core TM Processor (LGA1151)
• Up to 64 GB maximum DDR4 2666 MHz non ECC U-DIMM on 4 sockets.
• 1 x PCIe by 16 (Gen 3) , 2 x PCIe by 4 (Gen 3) , 1 x PCI
• 6 x SATA 3.0 ports and 14 x USB Ports
• 3 x Giga LAN port with intel 1 x I219LM and 2 x intel I211AT

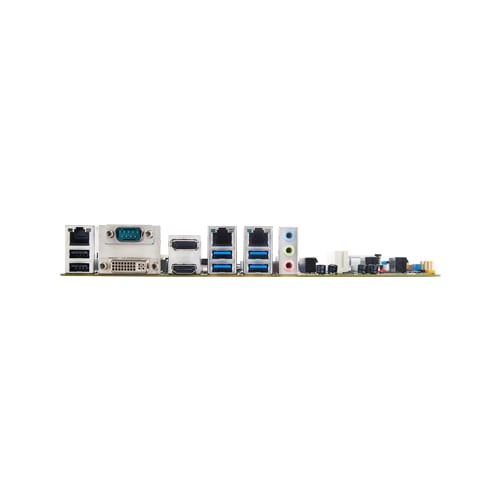

• DVI-I + HDMI 1.4+ Display port 1.2 by I/O panel
