GSPI-Q4700-LLVA 産業用シングルボードコンピュータ - PICMG 1.3 / Intel 10th Gen.(Comet Lake-S) / Q470E (LGA1200)

• 概要・特長
• 機能・仕様
• 価格・オプション
• サポート・ダウンロード

概要・特長

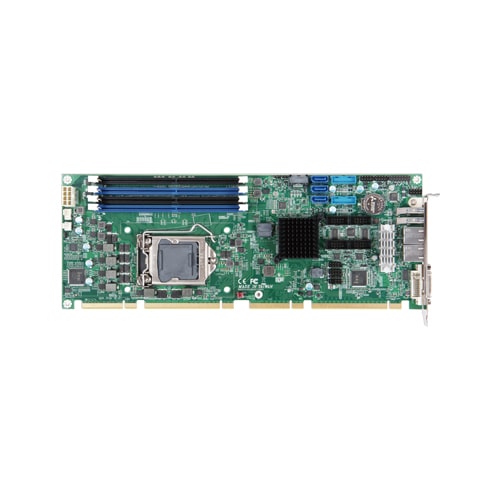

This product is a PICMG 1.3 form factor industrial mainboard which based on Intel® Core™Processors that offer 14nm Hi-K process technology with energy efficient architecture. GSPI-Q4700-LLVA adopts four DDR4 UDIMM sockets and supports up to 128GB Non-ECC memory.PICMG 1.3 solutions are suitable for factory automation applications. Moreover, with the high performance and high-end specifications, GSPI-Q4700-LLVA is our Comet Lake-S platform architecture on Industrial Motherboard product line.

適用例

• Support Intel Core i3 / i5 / i7 / i9 / Pentium / Celeron processors (LGA1200)

  • Recommended CPU List:
    Intel Celeron G5900E
    Intel Celeron G5900TE
    Intel Pentium Gold G6400E
    Intel Pentium Gold G6400TE
    Intel Core i3-10100E
    Intel Core i3-10100TE
    Intel Core i5-10500E
    Intel Core i5-10500TE
    Intel Core i7-10700E
    Intel Core i7-10700TE
    Intel Core i9-10900E
    Intel Core i9-10900TE

• Multi-display Supported

  • Full HD video can be smoothly played.It also supports output of the VGA, DVI-D Port, and HDMI.
• Dual Gigabit Ethernet

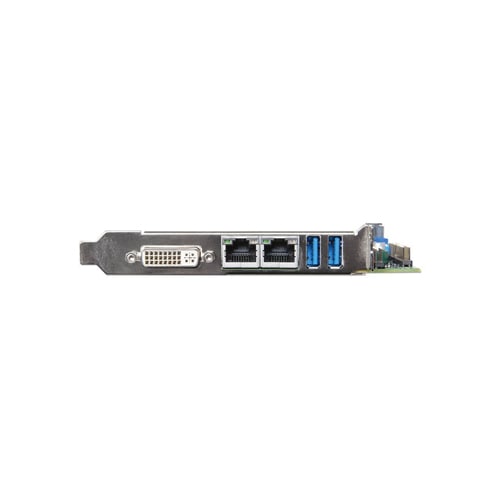

  • The product has 2 RJ45 connectors on rear I/O for customer usage, which are Intel® I219LM + Intel® 210AT PCIe chip.
• Extend Peripherals Freely Rich Interface

  • This product is equipped with a variety of interfaces such as serial port, USB 3.2/ 2.0, 8-bit GPIO, audio jack,Line-out/ Mic-in, M.2 Key M 2280, Giga LAN, HDMI, ect. For customers with various needs.
