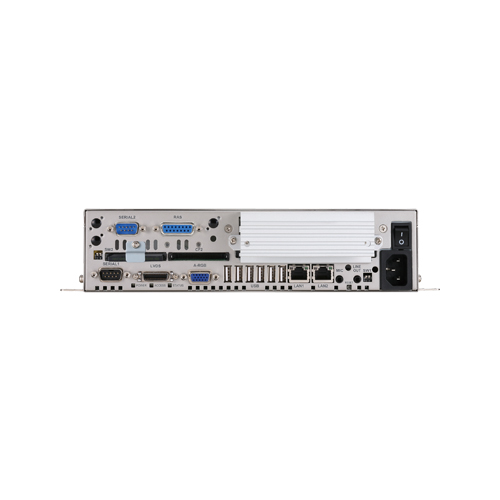

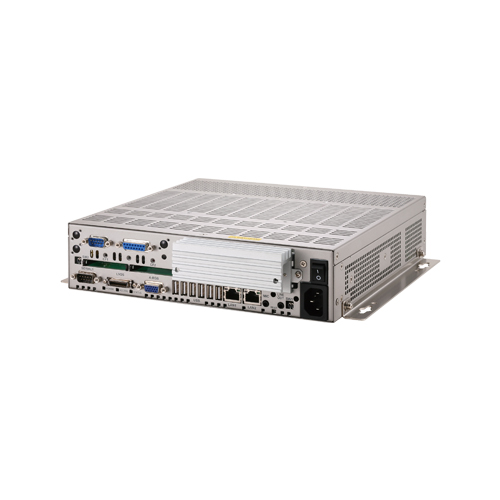

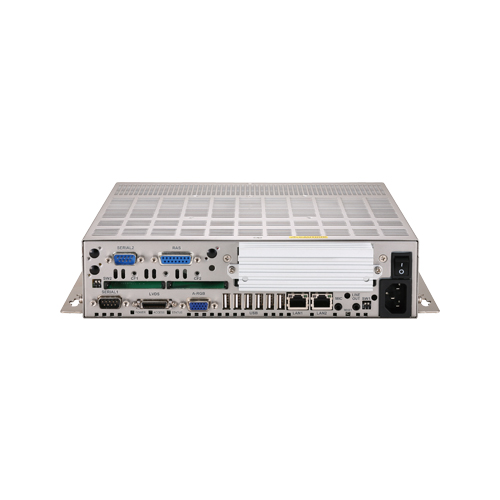

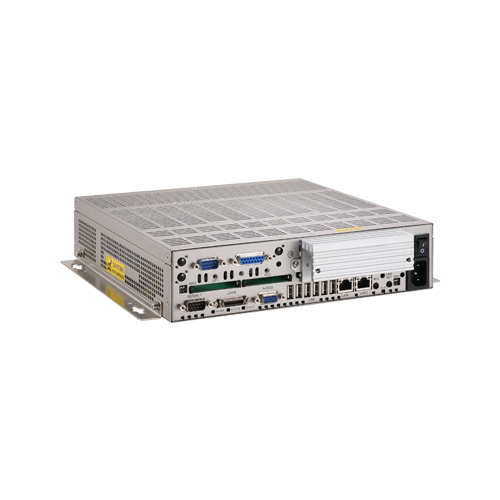

IPC-BX900-AC BX-900 - Fanless Embedded PC / High Expandability / Core Duo L2400 + 945GME / AC Power Supply

Discontinued

End of Repair Service: 2020/09/11

Check a compatible replacement

* The end of repair date may change depending on the situation.

Specifications

Mechanical Design

Mounting	Desktop; Wall Mount

Software Support

Supported OS	Windows XP Professional (FES) 32-bit; Windows XP Embedded 32-bit

Core System

CPU Generation (Development code)
Processor	Core Duo L2400; 945GME + ICH7M-DH
CPU socket
Memory	1GB
RAS	Remote reset; Watchdog timer
GPU
AI Performance
Security

Interface

Video	1x Analog RGB
LAN	2x 1000BASE-T
Wireless
Audio	1x Line out; 1x Mic-in
I/O	6x USB2.0; 2x RS-232C; 1x RS-422A/485
Memory card	2x CF slots

Expansion Slot

Expansion bus	-
Drive bay	1x 3.5-inch bay (SATA)

Power

Input voltage	100 to 240VAC; -

Environment

Operating temperature	0 to 50°C (32 to 122°F) (with no airflow)
Storage temperature	-10 to 60°C (14 to 140°F)
Standards & Certifications
