Rich Variety of Interfaces and Excel lent Lineup M2M Controller Series

The M2M Controller Series consists of two types of controllers: a stand-alone integrated type and an I/O interface expandable configurable type. The system is adaptable to a wide variety of locations, wiring methods and number of I/O channels. You can build a custom control and monitoring system to meet your specific needs.

Integrated Type

The integrated type offers a wide range of models with a variety of I/O interfaces and communication protocols.

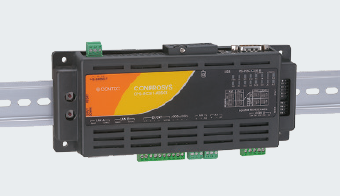

DIN rail mounted image

3G model

Software Features

Hardware Features

  • DIN rail or fixed mounting options available
  • Embedded CPU
  • Operating temperature range: -20 - 60°C (-4 - 140°F)
  • Durable hardware reduces maintenance costs
  • Daisy-chain connections do not required a HUB
  • Physical dimensions: 188.0(W)×78.0(D)×30.5(H) mm (7.40"×3.07"×1.20") (does not include protrusions and antenna)
  • Power supply voltage: 12 - 24 VDC

OPC UA Server Built-In Model

OPC UA server is built-in the firmware.
It can directly communicates with an Information network without a bridge PC.

CNC Communication

Configurable Type

The configurable type allows users to add a variety of I/O modules to a CPU controller providing ultimate flexibility.

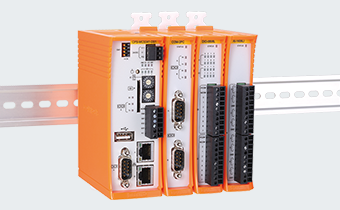

DIN rail mounted image

Software Features

Hardware Features

  • Expandable design

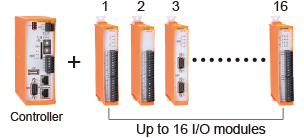

  • Capable of supporting up to 16 I/O modules on a single controller
  • DIN rail mountable
  • Embedded CPU
  • Operating temperature range: -20 - 60°C (-4 - 140°F)
  • Durable hardware reduces maintenance costs
  • Daisy-chain connections do not required a HUB
  • Physical dimensions: 44.7(W)×94.7(D)×124.8(H) mm (1.76"×3.83"×4.91") (does not include protrusions and antenna)
  • Power supply voltage: 24 VDC

NEWOPC UA Server Built-In Model

Seminar Textbook

For hands-on seminar of the CONPROSYS series [10MB]
