Overview / Features

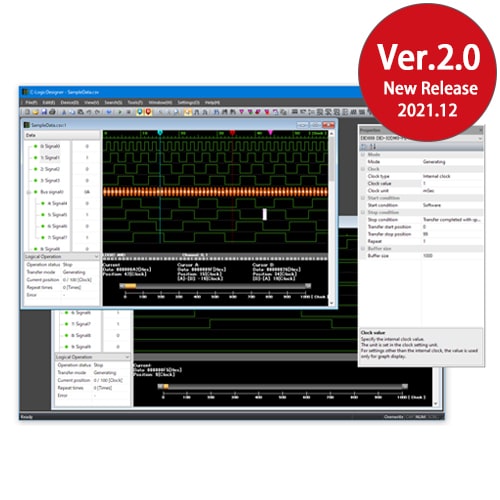

C-LogicDesigner is software that uses a Contec high-speed bidirectional digital I/O device (32DM series) to generate digital signals and provide logic analyzer functions based on sampling. It is capable of automatically generating digital signal patterns and directly editing data in graphs, as well as generating signals based on a wide range of output conditions, checking signals that were sampled under specified conditions, saving data in files, searching data patterns, frequency calculation, and other functions.

• Logic pattern creation functions (such as copy, paste, swap, and automatic generation) based on an intuitive and easy-to-understand GUI

  • Generated data can be edited directly in the graph window. C-LogicDesigner is equipped with a full set of editing functions including direct input of [0, 1] values, copy & paste, data inversion, pulse width change, and data replacement for individual channels. Basic data patterns can be generated automatically.
• High-speed logic analyzer functions with sampling at up to 50MHz and pulse generator functions

  • Signals acquired by the sampling functions of the high-speed bidirectional digital I/O device (32DM series) are displayed graphically as a logic analyzer. Using the high-speed digital signal output function of this series, the created logic pattern can be output as a pulse generator.
    • *
      50MHz sampling speed is the maximum value when using DIO-32DM3-PE.
• Functions for quickly searching large volumes of sampling data for specific logic patterns, and a convenient bookmark function

  • Even when working with large volumes of data, you can quickly find the data you are looking for with graph zoom, jump, bookmark, data pattern search, and other functions.
• Extensive graph observation functions (such as cursor, bus creation, zoom, pulse count, and frequency calculation)

  • Vertical line A, B cursor, grouping multiple signals to display as a bus, and graph zoom are available, for convenient graph observation. C-LogicDesigner is also equipped with convenient calculation functions for checking data, including a pulse counter and frequency computer.
• A rich set of trigger functions (software, external trigger, data count, pattern match)

  • For the start and stop conditions of generating and sampling, select from multiple conditions including software start and stop buttons, external trigger, completing transmission of the specified quantity (stop condition), and pattern match.
