Multi-vendor Compatible PLC to IoT M2M Gateway Series

A single CONPROSYS controller can collect data from multiple PLC controlled equipment.
M2M Gateway series supports devices from a variety of vendors,
including Mitsubishi’s MELSEC series, Omron’s Sysmac series, JTEKT’s TOYOPUC series, Panasonic FP series, and Keyence KV series.

• M2M Gateway Functionality
• Line Up / Options
• New Functions / Improvements

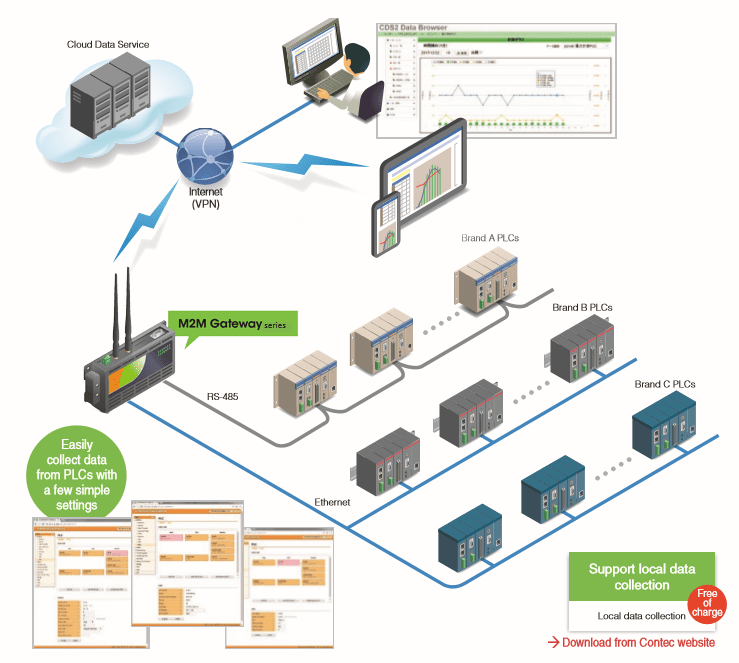

Easily Link Existing Equipment to IoT Systems

Monitoring PLC Device Memory

• Reads data from PLC memory (I/O status, data register, link register, file register, etc.)
• Transmits collected data to the cloud through simple settings.
• It is possible to communicate with the PLC at an arbitrary timing by setting the communication attribute and using the VTC function

Supports Multiple PLC Devices and Modbus Equipment from Different Vendors

Compatible with Mitsubishi MELSEC-FX / -A / -Q / -L – iQ-R series, Omron Sysmac C / CPM / CS /CJ / CP series, and JTEKT TOYOPUC PC10G-CPU series.Communicates with a variety of Modbus equipment

• List of Supported PLCs
• List of Supported Modbus Equipment

Collect information from each company's CNC and send data to host system by OPC UA communication

The status of output messages and signal tower from CNC (FANUC / Mitsubishi Electric / Brother Industries) can be collected and sent to the host system using the built-in OPC UA server function. It is possible to add an Ethernet communication function to machine tools that do not have a means of communication with the outside.

• Technical Guide| FANUC CNC Connection

Link Up to 10 Systems and 256 Register Groups

Connect up to 10 PLCs using an Ethernet connection or up to 128 PLCs using a serial connection.Connect up to 256 register groups, gather up to 10000 data.

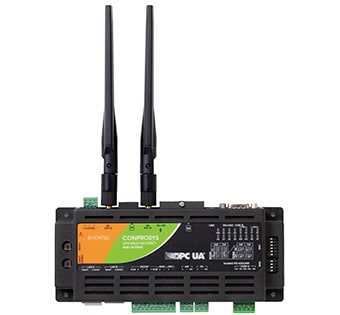

Integrated Type

• *
  Common features are same as integrated type M2M controllers.

Software Features

•
  Data Transmission
•
  Supports OPC UA Standard
•
  MTConnect
•
  Signal Input and Output
•
  4G LTE/920MHz Communication
•
  Modbus Master
•
  Modbus Slave
•
  PLC Master
•
  Monitoring
•

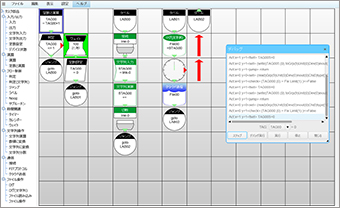

  Task Scripting
•
  CNC
•
  Simple Router Function
•
  BACnet Server Communication Function
•
  BACnet Client Communication Function

Hardware Features

• DIN rail or fixed mounting options available
• Embedded CPU
• Operating temperature range: -20 to 60°C (-4 to 140°F)
• Durable hardware reduces maintenance costs
• Daisy-chain connections do not required a HUB
• Physical dimensions: 188.0(W)×78.0(D)×30.5(H) mm (7.40"×3.07"×1.20") (does not include protrusions and antenna)
• Power supply voltage: 12 - 24 VDC

Configurable Type

• *
  Common features are same as integrated type M2M controllers.

Software Features

•
  Data Transmission
•
  Supports OPC UA Standard
•
  MTConnect
•
  Signal Input and Output
•
  4G LTE/920MHz Communication
•
  Modbus Master
•
  Modbus Slave
•
  PLC Master
•
  Monitoring
•
  Task Scripting
•
  CNC
•
  Simple Router Function
•
  BACnet Server Communication Function
•
  BACnet Client Communication Function

Hardware Features

• Expandable design
• Capable of supporting up to 16 I/O modules on a single controller. See all I/O modules
• DIN rail mountable
• Embedded CPU
• Operating temperature range: -20 - 60°C (-4 - 140°F)
• Durable hardware reduces maintenance costs
• Daisy-chain connections do not required a HUB
• Physical dimensions: 44.7(W)×94.7(D)×124.8(H) mm (1.76"×3.83"×4.91") (does not include protrusions and antenna)
• Power supply voltage: 24 VDC
