Hospital Wireless LAN

System Overview

This hospital wireless LAN solution uses FX Series wireless LAN equipment for communication with electronic medical records and bedside vital monitors to ensure safety and peace of mind.

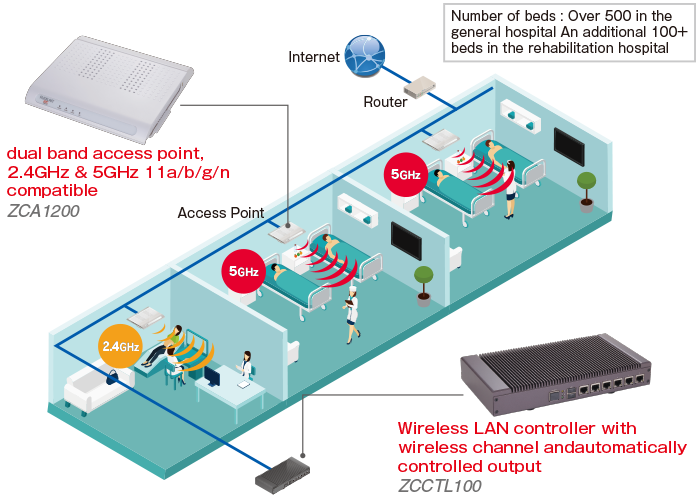

System Diagram

The use of a wireless LAN access point (master station) with central management functions that supports simultaneous connection of wireless LAN standards IEEE 802.11n/a (5-GHz band) and IEEE 802.11n/b/g (2.4-GHz band) enables the central management and control of wireless access points installed at various locations.
Batch management can be performed to configure settings for replacement operations when a problem occurs and to configure connection restrictions, and thereby reduce design, management, and operation costs.


  • PoE support

    A PoE injector is used to supply power and data over a LAN cable. There is no need to worry about the position of the power supply when installing the main unit on ceilings or walls.

  • Smart Access Point ZCA1300

    The lineup includes models that are IP67 certified dust and water resistant for outdoor use.
    Equipped with (2.4-GHz) beamforming function to automatically optimize radio wave environment.

  • Complete security

    Easily construct a Wi-Fi area for use of various terminals. Access restrictions can be freely set, and it is possible to reduce the workload for configuring and managing security measures.
