CPS-HBL-8005F CONPROSYS Series 5 port 10/100M Unmanaged Industrial Switching HUB

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

This product is a compact-sized industrial switching HUB [25.2(W) x 94.7(D) x 124.8(H) mm] with 5 ports for IEEE802.3u(100BASE-TX) / IEEE802.3(10BASE-T) compliant. In addition, the Auto MDI/MDI-X features automatic negotiation. An ideal product for the place where quietness is required as it contains no fan. Moreover, the product can operate in the temperature between -20 and + 60°C. There are two supplies of power, and function that prevents power from connecting in reverse.

• • This product contains five ports for IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T) in the compact size (25.2(W) x 94.7(D) x 124.8(H) mm). It is ideal for the place where quietness is required as the product contains no fan. The product is created with metal that is excellent in heat dissipation and able to operate in the temperature between -20 and + 60°C.
• • The Auto MDI/MDI-X feature automatically determines straight or cross cable, avoiding wiring trouble due to wiring mistake. Moreover, auto-recognition function of communication rates (10/100Mbps) and communication methods (half/full duplex) by the auto-negotiation feature.

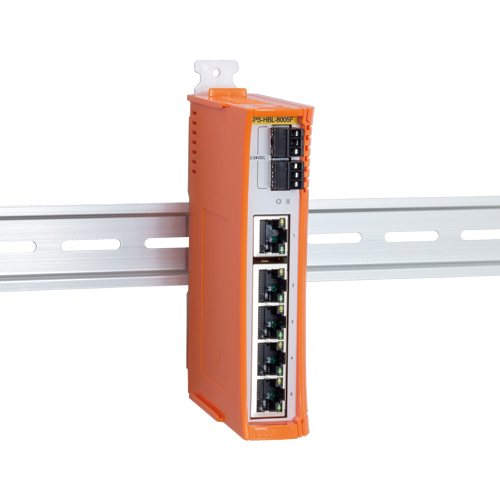

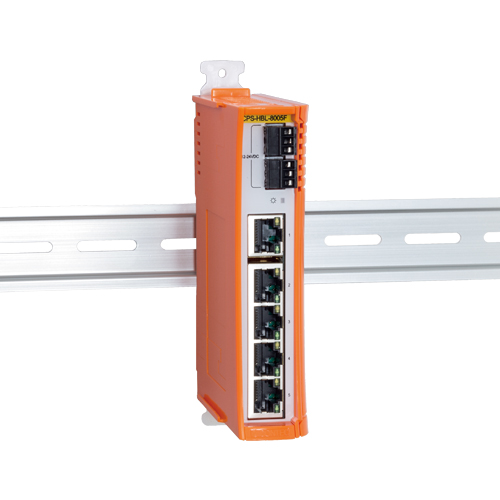

• • As the product is mounted on the 35mm DIN rail, removing and replacing are easy as well.
• • It is compatible with 8 - 35VDC wide range power and can be used in various power environment. In addition, An FG terminal is equipped in the power connector.
