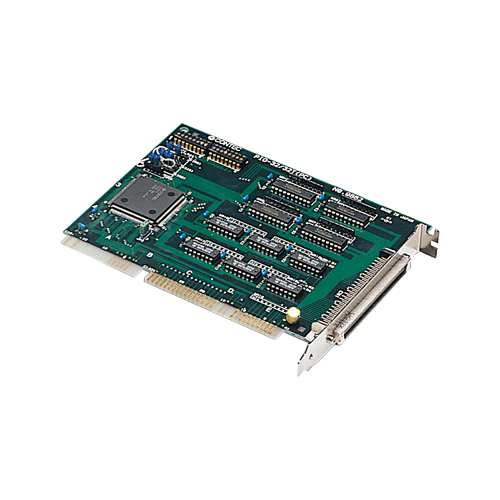

PIO-32/32T(PC) Digital I/O ISA card 32ch/32ch (non-isolated 5VDC-TTL)

* The end of repair date may change depending on the situation.

A high-speed response is possible at TTL level input and output.
Four groups and the digital signal of 32 points can be inputted by making eight points into one group.
Four groups and the digital signal of 32 points can be outputted by making eight points into one group.
Four of 32 input signals can be used as an interruption input. Moreover, the edge of the input signal which generates interruption can also be chosen.
The option function other than a general-purpose input-and-output function is prepared.

Specifications

Input Channels	32-ch
Output Channels	32-ch
Bi-directional I/O Channels	-
Response Time (Input)	200nsec (max.)
Response Time (Output)	200nsec (max.)
Operating Voltage (Input)	5VDC-TTL
Operating Voltage (Output)	5VDC-TTL
Input Circuit	Non-isolated TTL level input (Negative logic)
Output Circuit	Non-isolated TTL open-collector output (Negative logic)
Built-in Power Supply	-

Supported OS
