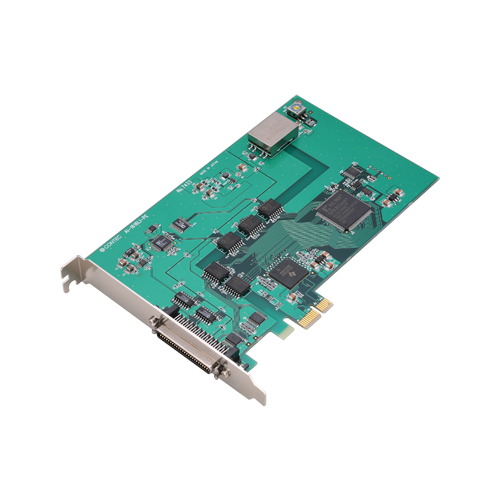

AI-1616LI-PE Analog Input PCI Express Card /16ch AI(16bit 100ks/s) / 1ch Counter / Bus Isolation - Multifunction DAQ L Series

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Bus isolated high precision analog input 16 channels, each 4 channels for digital I/O, counter 1 channel
  • Functions and connectors are compatible with PCI compatible board ADI16-16(LPCI)L
  • Bus isolation between PC and external analog input circuit by a digital isolator
  • The start/end of sampling can be controlled by software, comparison of conversion data, an external trigger, etc.
  • Equipped with buffer memory (1K data) that can be used in the FIFO or RING format
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
AI-1616LI-PE Analog Input PCI Express Card /16ch AI(16bit 100ks/s) / 1ch Counter / Bus Isolation - Multifunction DAQ L Series

Options

Cable

Item Item Name
PCA50PS-P 50pin miniature ribbon connector to Open-Ended, Shield Cable (Mold type)
PCB50PS-P Both sides with connector shield cable for 50pin miniature ribbon connectors

Terminal

Item Item Name
ATP-8L BNC connectors for Analog I/O Board
EPD-50A Screw Terminal (M3 x 50)

Expansion Accessory Module

Item Item Name
ATBA-16L Buffer Amplifier Function Extension Box for analog input board
ATBA-8L Buffer Amplifier Function Extension Box for analog input board

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development of analog input and output
API-AIO(LNX) Analog I/O Driver for Linux
API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
API-TIMER(W32) Timer Driver

Library Software

Item Item Name
ML-DAQ MATLAB compliant Data Acquisition Library
VI-DAQ VI Library of data acquisition for LabVIEW

Application software

Item Item Name
C-LOGGER Data Logger Software for Windows

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course)
