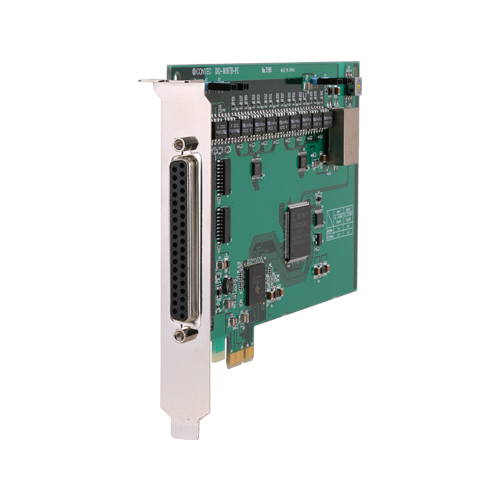

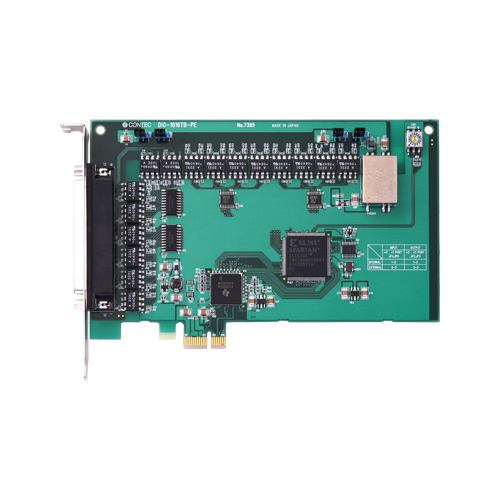

DIO-1616TB-PE Digital I/O PCI Express card 16ch/16ch (5VDC on-board power supply high-speed isolated 5VDC-TTL)

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Opto-coupler isolated TTL level input, opto-coupler isolated TTL level output
  • Opto-coupler bus isolation
  • Power supply (5VDC 600mA) for driving opto-coupler
  • You can use all of the inpur signals as interrupt events.
  • This product has a digital filter to prevent input signals from carrying noise or a chattering.
  • Windows/Linux compatible driver libraries are attached
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
DIO-1616TB-PE Digital I/O PCI Express card 16ch/16ch (5VDC on-board power supply high-speed isolated 5VDC-TTL)
  • VCCI
  • CE marking

Options

Expansion Accessory Module

Item Item Name
CM-32L Signal monitor Accessory for Digital I/O

Cable

Item Item Name
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P 37pin D-type(M) at Each End, Flat Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable

Terminal

Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)
EPD-37A Screw Terminal (M3 x 37)

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver
