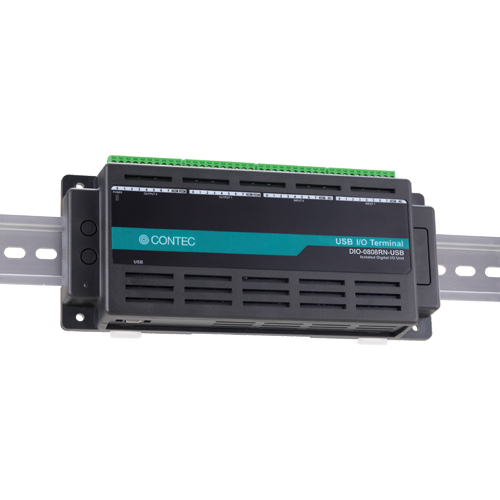

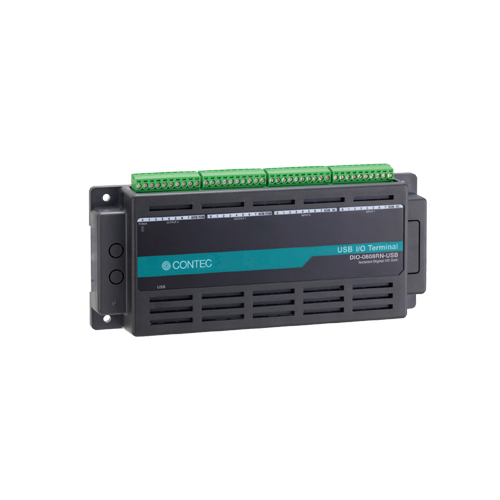

DIO-0808RN-USB Digital I/O USB I/O unit 8ch/8ch (isolated 12 - 24VDC / power relay - 240VAC - 28VDC) - the N series

  • Standard Warranty1 yr
  • Extended WarrantyAvailable
  • Diverse installations such as screw fastening, magnet, DIN rail are possible
  • Compact design not restricting installation location (188.0(W) x 78.0(D) x 30.5(H))
  • Easy-to-wire terminal connector adopted
  • Relay outputs (Form C) with independent common
  • Optocoupler isolated input (compatible with current sink output/current source output)
  • Opto-coupler isolation and relay isolation
  • *
    For details about an extended warranty, please contact us

Ordering Information

Ordering Information

Model Description / Certification
DIO-0808RN-USB Digital I/O USB I/O unit 8ch/8ch (isolated 12 - 24VDC / power relay - 240VAC - 28VDC) - the N series
  • CE marking
  • FCC compliant
  • VCCI

Options

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver

Library Software

Item Item Name
DAQ-LV-WIN LabVIEW Data Acquisition Library
VI-DAQ VI Library of data acquisition for LabVIEW
