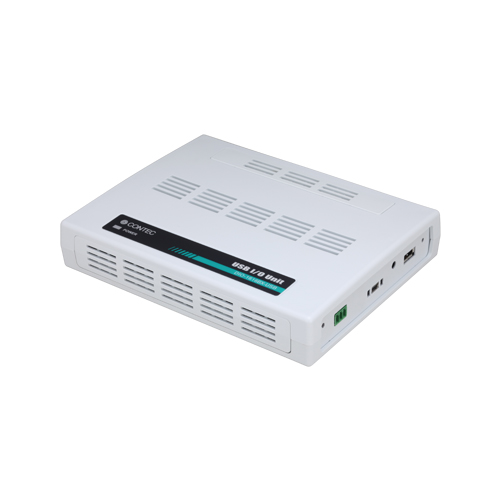

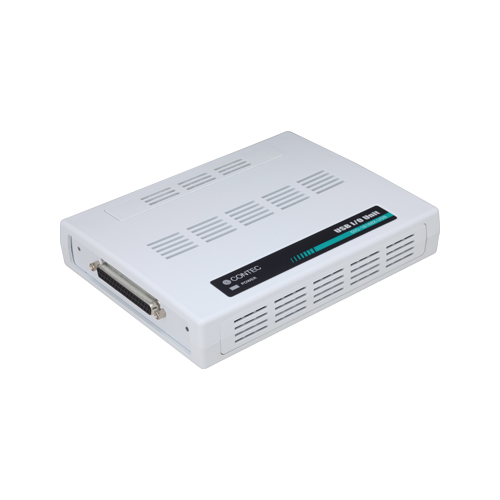

DIO-1616BX-USB Digital I/O USB I/O unit 16ch/16ch (12VDC on-board power supply isolated 12VDC) - the X series

  • Standard Warranty1 yr
  • Extended WarrantyAvailable
  • モーダルで開く
  • モーダルで開く
  • dio-1616bx-usb_r_rgb_96dpi_500x500モーダルで開く
  • 16 channels of Optocoupler isolated inputs (compatible with current sink output) and 16 channels of Optocoupler isolated open-collector outputs (current sink type)
  • Power for opto-coupler operation (12VDC 240mA) supplied internally
  • All input signals can be used as interrupt request signals
  • Zener diode for surge voltage protection and the circuit for overcurrent protection
  • Connectors are compatible with PCI/PCI Express bus-compatible board
  • Windows/Linux support device driver
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description Certification
DIO-1616BX-USB Digital I/O USB I/O unit 16ch/16ch (12VDC on-board power supply isolated 12VDC) - the X series
  • CE marking
  • FCC compliant
  • VCCI

Options

Device Drivers

Item Item Name
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver

Development Support Tools

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN LabVIEW Data Acquisition Library

Expansion Accessory Module

Item Item Name
CM-32L Signal monitor Accessory for Digital I/O

Cable

Item Item Name
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P 37pin D-type(M) at Each End, Flat Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable

Terminal

Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)
EPD-37A Screw Terminal (M3 x 37)

Power Supply / AC Adapter

Item Item Name
POA200-20-2 AC-DC Power Adaptor(5VDC, 2A)
POW-DD10GY F&eIT series DC-DC Power Supply Unit Input : DC10-30V, Output : DC5V 3A
PWD-25AWD5 F&eIT series AC-DC Power Supply Unit Input 85 to 264 VAC, Output 5 VDC 5A

Other Accessories

Item Item Name
BRK-USB-X USB I/O Unit Bracket for X series
