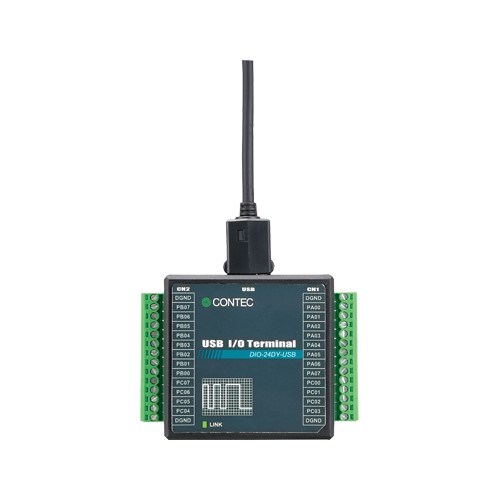

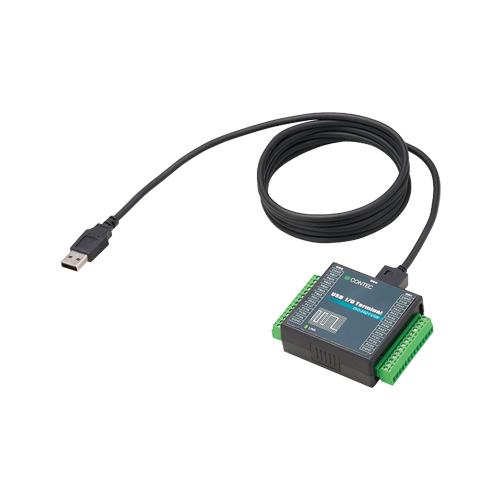

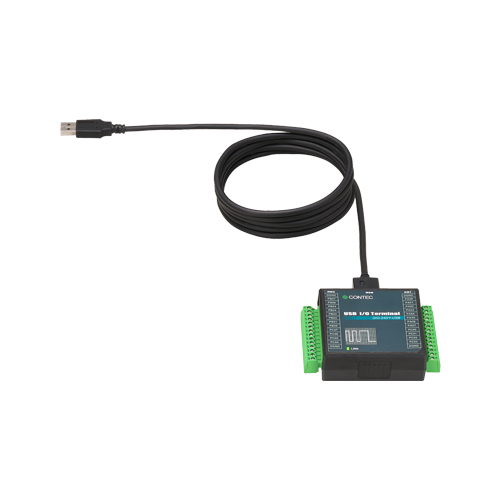

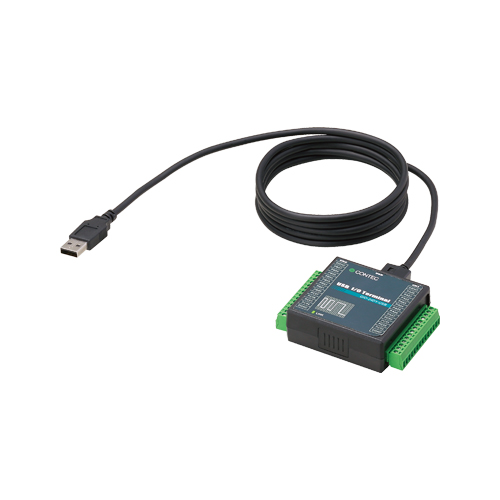

DIO-24DY-USB Digital I/O USB I/O unit bi-directional 24ch (non-isolated 3.3VDC-LVTTL) - the Y series

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Non-insulated LVTTL-level inputs/outputs (Positive)
  • Easy-to-wire terminal connector adopted
  • Windows compatible driver libraries are provided.
  • LabVIEW is supported by a plug-in of dedicated library VI-DAQ.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
DIO-24DY-USB Digital I/O USB I/O unit bi-directional 24ch (non-isolated 3.3VDC-LVTTL) - the Y series
  • CE marking
  • FCC compliant
  • VCCI

Options

Other Accessories

Item Item Name
BRK-USB-Y Bracket for USB I/O Terminal products
CN6-Y14 14 pin Terminal connector(screw type) 6/set

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver

Library Software

Item Item Name
DAQfast LabVIEW Data Acquisition Library
VI-DAQ VI Library of data acquisition for LabVIEW
