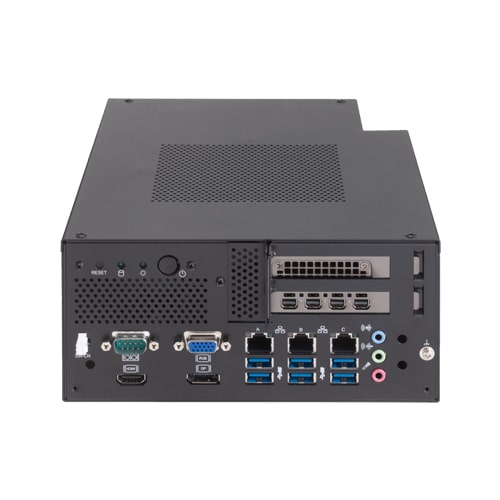

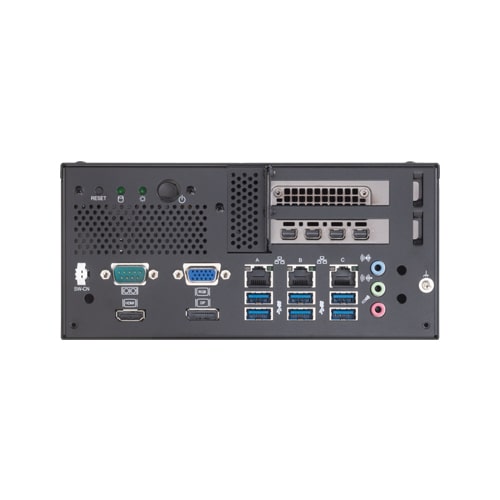

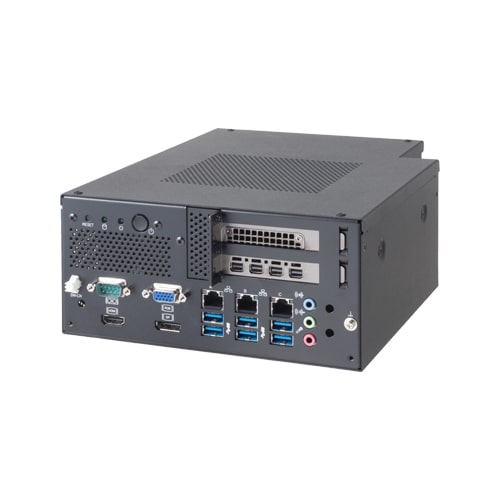

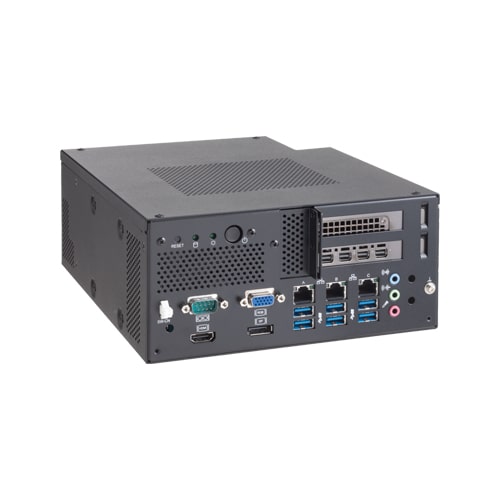

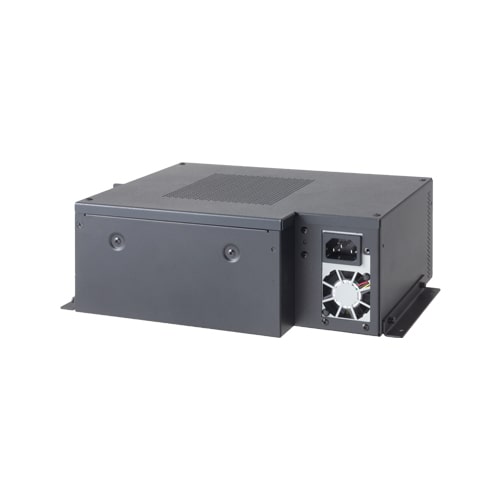

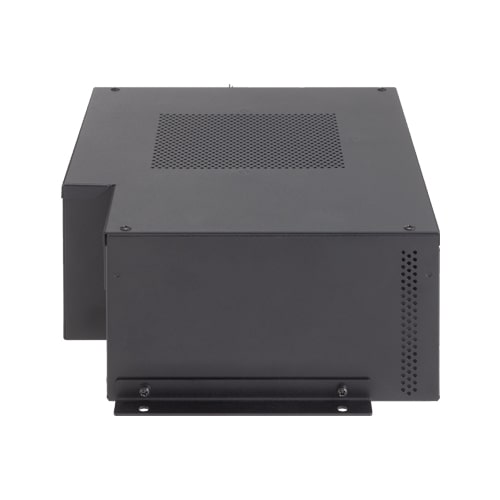

EPC-C5000B Embedded-PC EPC-C5000 series - Embedded-PC / Xeon-1290TE / 2 x PCIe(x8) / Win10 IoT Ent.2021 / AC power supply

  • NEW
  • Standard Warranty3 yr
  • Extended WarrantyAvailable
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • Compatible with Intel® Xeon® W / Core™ processor series Comet Lake
  • CPU built-in high-performance graphics
  • "Power failure protection system" features power-off without OS shutdown
  • Extend peripherals freely. Rich interface
  • Equipped with expansion slots that can house 2 x PCI Express (x8) cards
  • *
    For details about an extended warranty, please contact us.

Similar Models

Ordering Information

BTO Model

This product is ordered by BTO (Build to Order) method. Please inform the dealer about the BTO menu and request a quotation.

CPU
  • Core i3-10100TE
  • Core i5-10500TE
  • Core i7-10700TE
  • Core i9-10900TE
  • Xeon W-1250TE
  • Xeon W-1270TE
  • Xeon W-1290TE
  • Core i3-10100E
  • Core i5-10500E
  • Core i7-10700E
  • Core i9-10900E
  • Xeon W-1250E
  • Xeon W-1270E
  • Pentium Gold G6400E
Memory *1
  • 8GB
  • 16GB
  • 32GB
  • 16GB(8GBx2)
  • 32GB(16GBx2)
  • 64GB(32GBx2)
Storage 2.5 inch*2
  • 128GB SSD(TLC)
  • 256GB SSD(TLC)
  • 512GB SSD(TLC)
  • 1TB SSD(TLC)
  • 1TB HDD
  • M.2 128GB SSD SATA(TLC)
  • M.2 256GB SSD SATA(TLC)
  • M.2 512GB SSD SATA(TLC)
  • M.2 1TB SSD SATA(TLC)
  • None
OS
  • Windows 10 IoT Enterprise 2021 LTSC
  • MIRACLELINUX 9.0
  • None
  • *1
    Support for ECC will depend on the selected CPU. For details, please see Contec webpage.
  • *2
    A combination of 2.5” SSD x 1 + M.2 x 1 is also possible.
