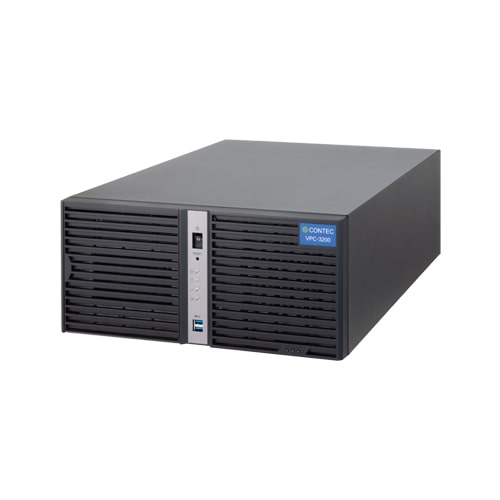

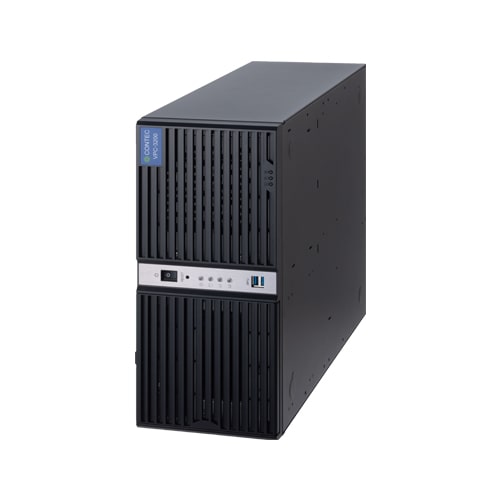

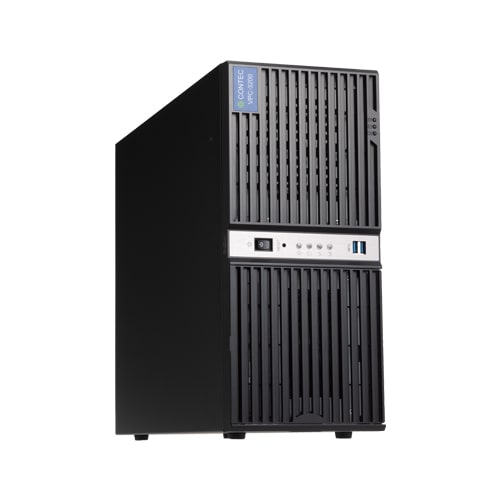

VPC-3200-G Industrial Computer VPC-3200-G - Desktop / Middle Tower / Intel 12＆13th Gen. (Alder Lake/ Raptor Lake) / 1x PCIe(x16) / 2x PCIe(x4) / 1x PCI

NEW

Standard Warranty1 yr
Extended WarrantyAvailable

Intel®12th/13th Gen Core processor in LGA1700 Up to 35W
4 x DDR5-4800 Non-ECC U-DIMM up to 128GB
1x PCIex16, 2x PCIe x4, and 1x PCI expansion slot available

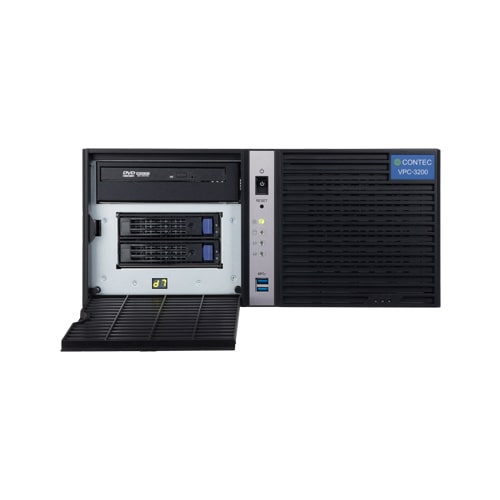

2x 2.5”/3.5” removable SATAIII storage drive, support RAID 1

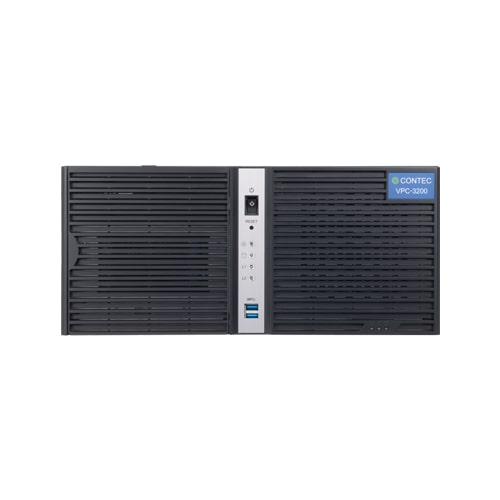

BIOS POST code display 7-segment LED design.

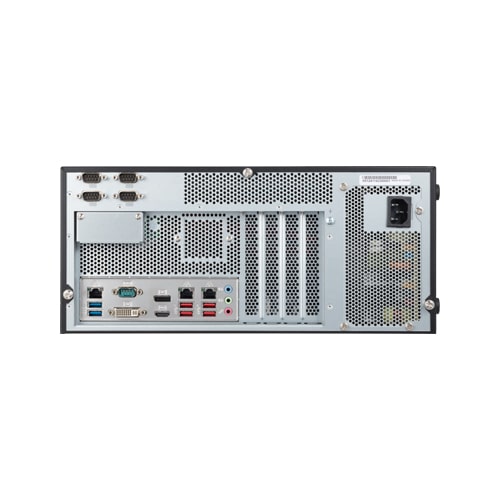

5x COM, 3x LAN, 6x USB 3.2 Gen1, 2x USB 3.2 Gen2, 2x USB 2.0

*
For details about an extended warranty, please contact us.

Specifications

Mechanical Design

Mounting	Desktop; Wall Mount

Software Support

Supported OS	Windows 10 IoT Enterprise 2021 LTSC 64-bit

Core System

CPU Generation (Development code)	13th Gen. (Raptor Lake-S); 12th Gen. (Alder Lake-S)
Processor	Core i7-13700TE; Core i5-13500TE; Core i3-13100TE; Celeron G6900TE
CPU socket	LGA1700
Memory	up to 128GB
RAS	Hardware monitor (Fan speed / Temperature / Voltage); Remote power-on; Remote reset; Watchdog timer
GPU	-
AI Performance	-
Security	TCG TPM 2.0

Interface

Video	1x DisplayPort; 1x HDMI; 1x DVI-I
LAN	2x 2500BASE-T/1000BASE-T/100BASE-TX/10BASE-T; 1x 1000BASE-T/100BASE-TX/10BASE-T
Wireless	-
Audio	1x Line out; 1x Line in; 1x Mic-in
I/O	6x USB3.2 Gen2 (USB3.0); 2x USB3.2 Gen1; 4x RS-232C; 1x RS-232C/422A/485
Memory card	-

Expansion Slot

Expansion bus	1x M.2 Key M (2280); 1x PCI Express(x16); 2x PCI Express(x4); 1x PCI
Drive bay	2x 3.5-inch bay (SATA)

Power

Input voltage	100 to 240VAC

Environment

Operating temperature	5 to 40°C (41 to 104°F)
Storage temperature	-20 to 60°C (-4 to 140°F)
Standards & Certifications	CE; FCC Class A; UKCA; VCCI Class A
