Key Features of Industrial Managed Switching Hubs: Five Essential Management Functions and Selection Points
A managed switching hub is a type of switching hub equipped with management functions such as network status monitoring and traffic control.
Models designed for stable operation in harsh environments such as factories and large offices are referred
to as industrial managed switching hubs and are designed with a strong focus on reliability and expandability.
This column introduces the core management functions found in managed switches and highlights the key points to keep in mind when choosing a model.
Contents
What Are Industrial Managed Switching Hubs?
A managed switching hub is a switching hub equipped with management functions that enable monitoring, control, and optimization of network traffic.
In industrial environments, diverse equipment such as factory systems, FA devices, sensor networks,
and monitoring systems operates simultaneously, making network stability, visibility, and rapid recovery from failures essential.
For this reason, industrial sites often prioritize managed models over unmanaged switches, especially those equipped with management functions such as SNMP, VLAN, QoS, and RSTP, which are explained in detail later.
As a result, industrial networks can be managed more effectively in the following ways.
- Segmenting networks by production line or application to improve traffic efficiency.
- Prioritizing critical traffic, such as for control systems, to help reduce delays and interruptions during congestion.
- Preparing redundant paths to prevent loops and enable automatic switchover to backup paths if a failure occurs.
- Monitoring the status of switches and connected devices to enable early fault detection and support preventive maintenance.
What Is a Switching Hub?
A switching hub is a device used to connect multiple devices to a network through LAN cables.
Equipped with multiple ports, it relays and routes traffic between control devices such as industrial PCs and PLCs.
A switching hub determines where to send data by referencing the MAC address—a unique identifier assigned to network devices, similar to a mailing address—of each connected device.
Switching hubs are sometimes confused with repeater hubs or routers, but their roles are different.
- Switching hub: Sends data only to the intended device based on the MAC address.
- Repeater hub: A legacy device that broadcasts the same data to all ports without distinguishing between destinations.
- Router: Connects a local network to the Internet.
For a more detailed explanation of switching hub basics, refer to the article below.
Related Article: How to Select an Industrial Switching Hub | Key Features and Specifications to Check for Each Application
Basic Switching Hub Operations
To understand the management functions of managed switches, it’s important to first understand how switching hubs relay traffic at a fundamental level.
Data exchanged on a network is transmitted in units called frames. This includes information such as source and destination MAC addresses.
The following are two particularly important basic operations.
MAC Address Learning
When a switching hub receives a frame, it checks the source MAC address and records the association (such as “This MAC address is connected to port X”) in an internal table known as the MAC address table.
By repeating this process, the hub learns which devices are connected to which ports and can forward frames only to the necessary ports.
Frame Forwarding
When forwarding a frame, the hub checks the destination MAC address against the MAC address table and sends the frame only to the corresponding port. If the destination MAC address has not yet been learned, the hub cannot determine the correct port.
In this case, the hub temporarily sends the frame to all ports except the receiving port. This behavior—sending frames broadly until the destination is identified—is known as “flooding.”
Classification of Switching Hubs by Management Method
Switching hubs are classified into managed switches, unmanaged switches, and smart switches based on whether—and to what extent—they support management functions.
Understanding the characteristics of each type makes it easier to select the optimal model based on network size and security requirements.
Managed Switches
Managed switches provide management functions that enable network visibility as well as precise control of traffic paths and quality.
In industrial environments, multiple networks operate simultaneously, including production lines, control systems, and monitoring systems. As a result, minimizing traffic imbalances and delays while maintaining stable data transfer is essential.
In addition to core controls such as network segmentation, traffic prioritization, and path switching during failures, managed switches support early fault detection through port status monitoring and log collection.
For these reasons, managed switches are a primary choice for industrial networks where stable operation is a top priority.
Unmanaged Switches
Unmanaged switches are simple models with no management functions.
They operate on a plug-and-play basis, requiring no configuration and enabling low-cost deployment.
While sufficient for small-scale networks or temporary installations, unmanaged switches do not support traffic control or security configuration.
As a result, their use is limited in industrial environments where many devices are connected and where rapid fault identification is required.
Smart Switches
Smart switches (also called web smart switches) sit between managed and unmanaged switches.
They provide a simple web-based management interface, enabling basic network control without specialized expertise.
Typical functions include the following.
- Network segmentation using VLANs
- Traffic control using QoS
- Basic traffic monitoring via port mirroring/li>
While not as full-featured as managed switches, smart switches are well suited to small- to medium-sized networks or manufacturing sites that require basic management functions at a lower cost.
Key Functions of Managed Switches
Managed switches are equipped with management functions that support stable operation, including network monitoring and traffic prioritization.
Because available features vary by model, this section outlines the core functions commonly found in managed switches.
SNMP (Monitoring and Control)
SNMP (Simple Network Management Protocol) is a standard protocol used to remotely monitor and control network devices.
When enabled on supported devices such as managed switches, SNMP enables collection of information such as operating status, port usage, temperature, and power conditions.
If an issue occurs, the device sends an SNMP trap, enabling early detection and response to events such as link-down conditions or device faults. SNMP also supports limited remote control, such as changing setting values. However, available controls are limited to the items exposed by the device’s MIB (Management Information Base).
In industrial environments, SNMP enables monitoring of the entire network operation and increases maintenance efficiency. For example, it allows remote visibility into PoE power usage for network cameras and the switching status of redundant paths.
VLAN (Network Segmentation Using Virtual LANs)
VLAN (Virtual Local Area Network) is a technology that allows networks to be virtually segmented regardless of physical wiring.
By creating multiple independent networks—such as for Production Line A and Production Line B—on a single switch, VLANs separate traffic by group, improving security and traffic efficiency. Segmenting networks by production line or department reduces the scope of broadcast traffic (messages sent to all devices within the same network). This limits unnecessary traffic and reduces network load.
VLAN configuration changes also allow flexible adaptation to equipment additions or configuration changes without major rewiring, improving overall operational efficiency.
QoS (Traffic Prioritization)
QoS (Quality of Service) is a technology that prioritizes specific traffic by controlling transmission order and bandwidth when multiple data flows occur simultaneously on a network.
As the number of connected devices increases, congestion can cause delays and packet loss, resulting in issues such as audio dropouts, video distortion, and slow web page loading.
Configuring QoS allows delay-sensitive, real-time traffic to be prioritized, ensuring stable transmission of critical data. This enables stable operation of systems such as surveillance (IP) cameras and VoIP-based voice systems.
RSTP (Redundancy and Loop Prevention)
RSTP (Rapid Spanning Tree Protocol) is a protocol that controls redundant paths while preventing network loops (cyclic paths).
In redundant networks where switches are connected through multiple paths, RSTP automatically switches to a backup path when a failure occurs, minimizing traffic interruption.
This enables recovery within a few seconds, helping maintain a stable network environment. RSTP is an enhanced, faster version of the conventional STP (Spanning Tree Protocol), offering significantly shorter path-switching times in the event of a failure.
How to Select an Industrial Managed Switching Hub
The key requirement for an industrial managed switching hub is the ability to maintain stable traffic without interruption, regardless of the operating environment.
Managed models support network monitoring and control, along with automatic recovery during failures, to provide higher reliability and more flexible operation.
When selecting a model, review the following points while taking budget and application requirements into account.
The following sections explain each point in detail.
1. Robustness and Environmental Resistance
Robustness and environmental resistance—the ability to operate reliably even in harsh environments—are especially important when selecting an industrial managed switching hub.
In environments exposed to high temperatures, humidity, vibration, or electrical noise, it is crucial to verify specifications such as operating temperature range, humidity tolerance, vibration resistance, and noise immunity to select a model suited to the installation conditions. For example, in factories with high temperatures or dust, or in railway facilities subject to frequent vibration, a wide operating temperature range and vibration-resistant design are essential for stable operation.
To ensure long-term reliability, select a product with environmental resistance appropriate to the operating conditions.
2. Management Function Capabilities
Management functions such as SNMP, QoS, VLAN, and RSTP (described above) directly impact network stability, efficiency, and security.
As outlined below, each function plays a different role and provides distinct operational benefits.
When deploying a system, it’s important to ensure that the required functions are included without gaps or excess based on the operating environment and management structure.
3. Power Specifications
Support for wide-range power input and dual power supplies is a key consideration when selecting an industrial switching hub.
If a system includes devices operating at different voltages or currents, choosing a model with wide-range input support allows spare network equipment to be standardized, reducing costs and supporting stable operation.
On the other hand, devices with a single power supply risk being shut down during a power issue, which can interrupt traffic across the entire network.
Models that support dual power inputs can continue operating even if one power source fails, helping maintain overall system reliability.
4. PoE support
PoE (Power over Ethernet) is a technology that delivers both data and power over a single LAN cable.
Because it eliminates the need for separate power wiring, PoE enables device installation even in locations where power work is difficult, greatly increasing flexibility for equipment such as surveillance cameras and wireless access points.
PoE can be classified into three types based on the supported standard.
In industrial environments, PoE-enabled models are particularly useful for outdoor or elevated installations where power work is difficult, reducing wiring costs, easing maintenance, and increasing installation flexibility. In sites where reliable monitoring and control are particularly important, models supporting IEEE 802.3af or IEEE 802.3at are recommended to ensure stable power delivery.
For a more detailed explanation of PoE functionality, refer to the technical column below.
Related article：What Are Industrial PoE Switching Hubs? Mechanisms, Standards, and 5 Key Selection Points
5. Expandability with SFP Ports and Modules
In industrial networks, it’s also important to be able to flexibly expand the network configuration based on the installation environment and communication distance.
SFP ports and modules play a key role in enabling this flexibility. Using SFP ports and modules makes it possible to connect switches via fiber-optic links and to achieve high-speed communication with remote sites, significantly increasing network design flexibility.
What Is an SFP Port?
An SFP port is a compact slot designed to accept a Small Form-factor Pluggable (SFP) module.
Installed on network devices, this port provides flexibility by allowing modules to be swapped, enabling different transmission methods such as copper (LAN cables) or fiber optics.
SFP Module Types and Applications
SFP modules are optical transceivers inserted into SFP ports that convert electrical signals to optical signals and vice versa.
Connecting switching hubs or routers to fiber-optic cables enables long-distance, stable data transmission.
Because fiber-optic cables provide electrical isolation, the devices also become less susceptible to lightning strikes or surge currents, reducing the risk of equipment failure. For example, SFP modules allow stable operation to be maintained even in environments where cabling runs alongside factory equipment or metal structures.
SFP modules can be further categorized based on the following criteria.
- Data Rate (e.g., 1000BASE, 10GBASE)
- Transmission Medium (fiber-optic or copper)
- Transmission Distance (from several hundred meters to tens of kilometers)
- Application (e.g., LAN extension, monitoring systems)
- Connector Type (LC, SC, etc.)
- Operating Temperature Range (wide-temperature support for industrial models)
Future Expandability
Industrial networks evolve as equipment is upgraded and additional devices are installed. For this reason, considering future expandability and flexibility is essential for ensuring long-term stable operation.
For example, if production line expansion or additional sensors are expected, selecting a model with a sufficient port count and bandwidth allows configuration changes to be handled smoothly. To prepare for future network requirements, it is recommended to choose products backed by solid support, including software update availability.
In addition, models equipped with SFP ports simplify migration to fiber-optic or long-distance connections, making it easier to expand or redesign inter-site networks.
Representative Industrial Managed Switching Hub Models
Below is a selection of Contec managed switching hub models designed for industrial applications.
The SH-9210F is an industrial managed switching hub featuring eight RJ-45 ports and two SFP slots, enabling flexible network configurations, including fiber-optic connections.
Equipped with management functions such as VLAN, QoS, RSTP, and SNMP, the SH-9210F enhances the reliability of monitoring and control networks while supporting stable operation.
Its metal chassis provides excellent heat dissipation and supports a wide operating temperature range of -35 to 70°C (-31 to 158°F). Dual DC power inputs (12 to 58 V) ensure stable operation across a variety of installation environments.
The SH-9210F is well suited for use in factories, outdoor facilities, and other environments where stable operation is required under harsh temperature conditions.
The SH-9210AT-POE is an industrial managed switching hub featuring eight RJ-45 ports and two SFP slots, with PoE power delivery support compliant with IEEE 802.3af/at.
This hub supplies power to connected devices while handling data traffic, simplifying the installation of PoE-compatible equipment such as surveillance cameras and wireless access points.
Equipped with management functions such as VLAN, QoS, RSTP, and SNMP, the SH-9210AT-POE enables stable network operation.
Its metal chassis provides excellent heat dissipation, and the fanless design supports a wide operating temperature range of -35 to 70°C (-31 to 158°F), reducing noise and maintenance requirements.
In addition, dual redundant DC power inputs (12–58 V) enable stable operation in industrial facilities and outdoor systems where high reliability is required.

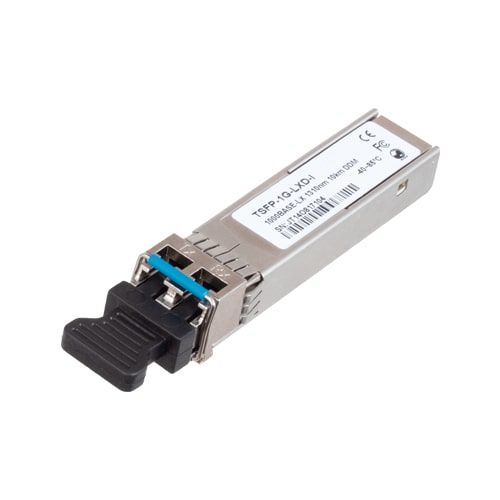

The SH-SFP-1G-LXD is an SFP module that supports 1000BASE-LX.
Whereas standard UTP cabling is limited to transmission distances of up to 100 m, this module extends the reach to as far as 10 km.It is well suited for network deployments that require long-distance connectivity.

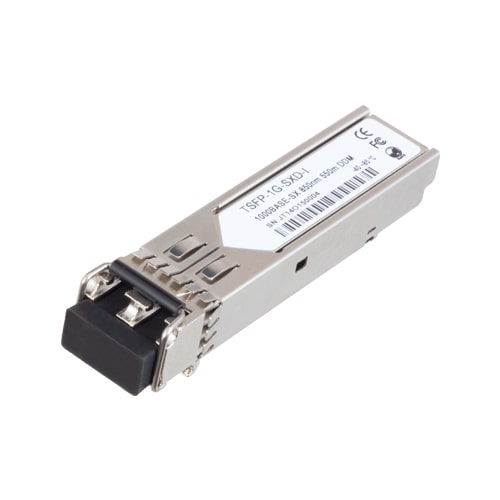

Like the SH-SFP-1G-LXD, the SH-SFP-1G-SXD is an SFP module that supports 1000BASE-SX.
When used with multimode fiber (MMF), it supports transmission distances of up to 550 m, making it suitable for network environments that require short-distance connectivity.
Conclusion
Industrial managed switching hubs offer advanced control functions such as VLAN, QoS, RSTP, and SNMP, but they generally cost more than unmanaged models.
For this reason, it’s important to assess network scale and operational objectives, identify the functions required for stable operation, and select a model suited to your specific application.
When setting up a system, take a comprehensive approach that includes evaluating functional requirements, installation conditions, and future expandability to select the most appropriate product.
