Enabling Signal I/O Control and the Capturing of Analog Signals at a Distance of 1 km.
CONTEC Releases Its New Product: A Series of Wireless I/O Terminals That Support Multi-hop Communication in the 920 MHz Band

  • Product & Service

Japan

The information included in this press release is current as of the publication date. The sale conditions, price, and specifications may be changed without notice.

CONTEC Co., Ltd. (listed on the Second Section of the Tokyo Stock Exchange, Securities Code: 6639—hereinafter "CONTEC") has developed wireless communication devices by using low-power wireless communication technology that specifies the 920 MHz band in order to enable signal input and output control, sensor input, and actuator control at a distance of 1 km. These devices will be released for sale within Japan gradually as a series for PC measurement control and wireless I/O from November 20, 2017.

The devices shown in this photograph are (from the left) the GW1-ETH-WQ, DIO-0404LY-WQ, and AI-1004LY-WQ.

Product name Model Functions Release date (Japan)
920 MHz Wireless
Ethernet Gateway
GW1-ETH-WQ
  • Wireless I/O main unit
  • Ethernet - 920 MHz wireless communication conversion
Shipping planned to start in November 2017
920 MHz Wireless
Isolated Digital I/O Terminal
DIO-0404LY-WQ
  • Wireless I/O expansion unit
  • Photocoupler isolated inputs: 4
  • Photocoupler-isolated open-collector outputs: 4
Shipping planned to start in November 2017
920 MHz Wireless
4-channel Analog Input Terminal
AI-1004LY-WQ
  • Wireless I/O expansion unit
  • 10-bit, 4-channel, ±10 V analog input
Shipping planned to start in January 2018

This series for PC measurement control and wireless I/O uses 920 MHz band wireless communication technology, which has high diffraction properties and is very resistant to obstacles. These wireless I/O devices enable digital signal and analog signal I/O at locations that are distant from the PC. This makes it possible to construct long-distance communication systems outdoors that cover a wide area of approximately 1 kilometer without having to apply for a permit.

This series for PC measurement control and wireless I/O uses for its main unit a gateway device (model: GW1-ETH-WQ) that converts Ethernet communication from the LAN port of a PC to 920 MHz wireless communication. Then, expansion units having a variety of I/O functions are connected to the main unit wirelessly. The driver software (API functions), which is available by way of a free download from the CONTEC website, can be used to create Windows applications in programming languages such as Visual Basic and Visual C++. This driver software is the same as that used with CONTEC measurement control PCI boards and USB modules, so programs can be created in the same manner as they are created for these PCI boards and USB modules.

Main features of the wireless I/O series

  • Common

    ・Supports 920 MHz band wireless communication, which has an excellent transmission distance
    ・Highly reliable multi-hop communication, AES-encrypted data communication
    ・Supports ambient temperatures from -20°C to +60°C
    ・Compact design (25.2 [W] × 94.7 [D] × 124.8 [H] mm) that enables installation in a wide variety of locations
    ・Can be installed on a DIN rail with the optional DIN rail mounting bracket
    ・Windows driver provided (free download from the CONTEC website)

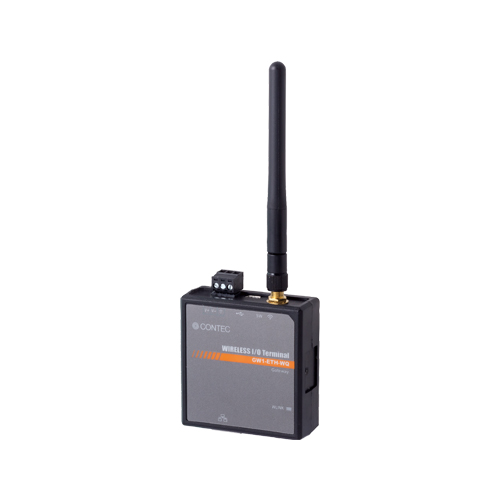

  • 920 MHz Wireless Ethernet Gateway GW1-ETH-WQ

    ・Converts Ethernet communication to wireless communication in the 920 MHz band
    ・Enables the construction of a wide range of wireless I/O systems with a Windows PC used as the host

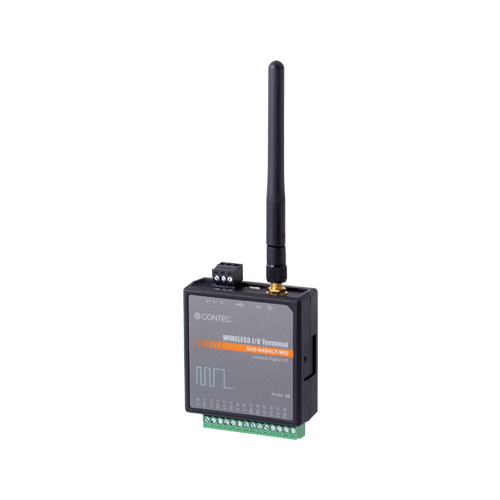

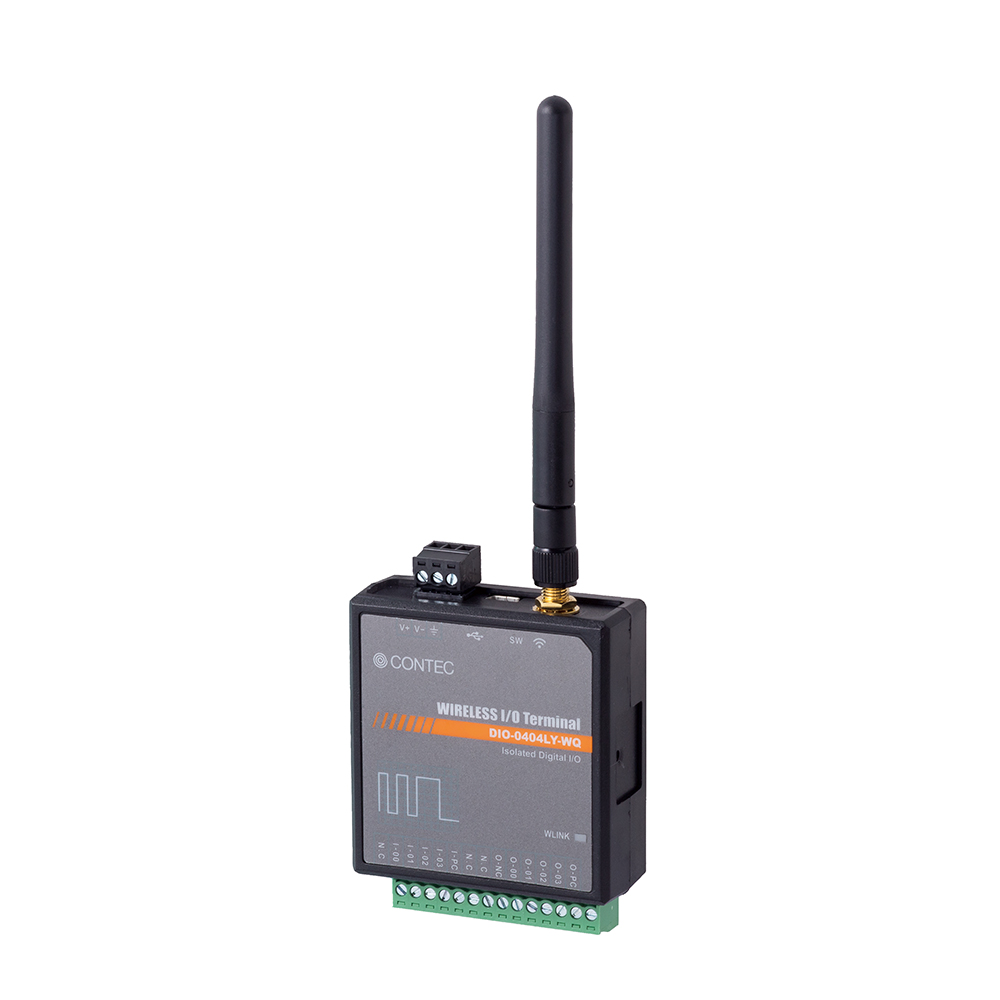

  • 920 MHz Wireless Isolated Digital I/O Terminal DIO-0404LY-WQ

    ・Equipped with 4 photocoupler-isolated inputs (supporting current sink output) and 4 photocoupler-isolated open-collector outputs (current sink type)
    ・Built-in Zener diodes for surge voltage protection in the output circuit
    ・Equipped with a digital filter function

  • 920 MHz Wireless 4-channel Analog Input Terminal AI-1004LY-WQ

    ・10-bit, analog input, 4-channel
    ・Bipolar ±10 V, A/D conversion speed: 10 µs/ch
