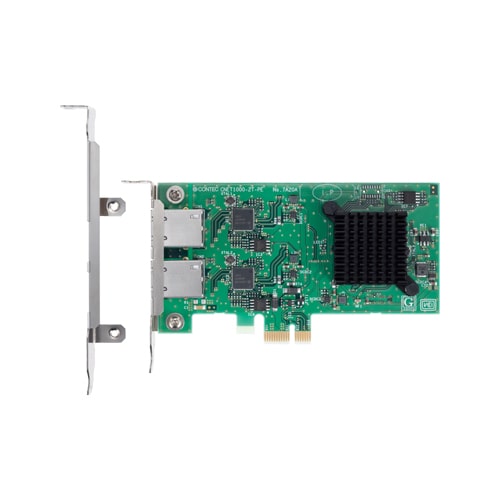

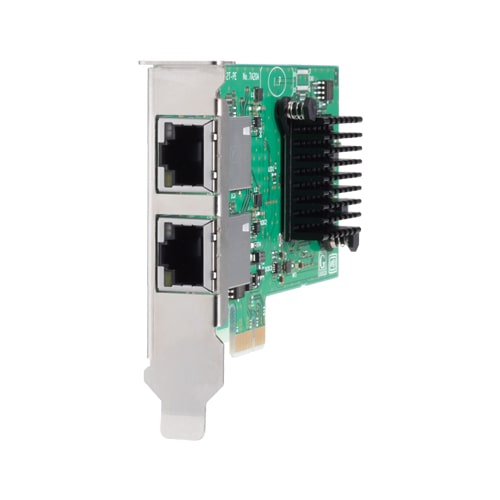

CNET1000-2T-PE PCI Express Compliant Gigabit LAN Card 2port

  • NEW
  • Standard Warranty1 yr
  • Extended WarrantyAvailable
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • PCI Express bus-compliant Ethernet Network Card(LAN Board) which conforms to IEEE802.3ab (1000BASE-T)
  • Low-Profile size slot and Standard size slot
  • Operated in the temperature between -40 °C and +75 °C ( -40 °F and +167 °F).
  • Windows/Linux compatible driver
  • *
    For details about an extended warranty, please contact us.

Specifications

Add-on Module

Series FLEXLAN IoT
Bus Specification PCI Express
Size Low Profile
Used Connector 2x RJ-45

Ethernet

Number of Ports 2-port
Communication Standard IEEE802.3ab (1000BASE-T); IEEE802.3u (100BASE-TX); IEEE802.3 (10BASE-T)

Supported OS

Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows Server 2019; Linux
