Overview / Features

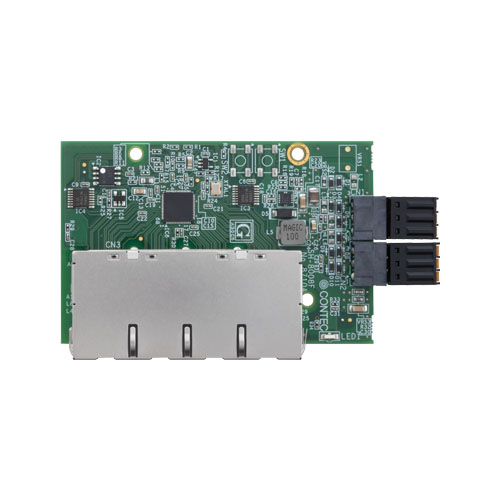

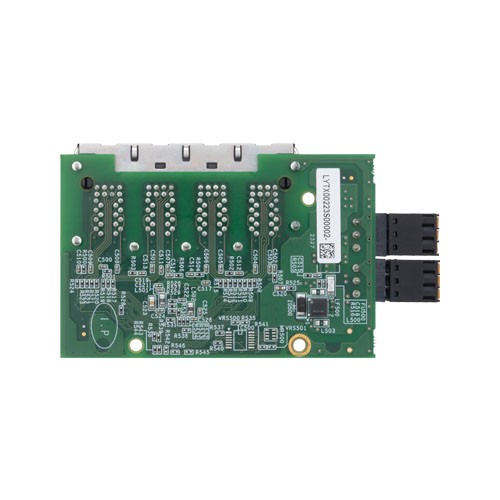

This product is a compact industrial 8-port unmanaged switching hub board supporting 100M. This hub can be used in the places where the quietness or a longer lifetime of the product is desired. Furthermore, a metal housing with excellent heat dissipation enables the product to be operated in the temperature between -20°C and +60°C. When you build a system incorporating this product, read this Reference Manual carefully, and check the connection with external devices and installation conditions.
-

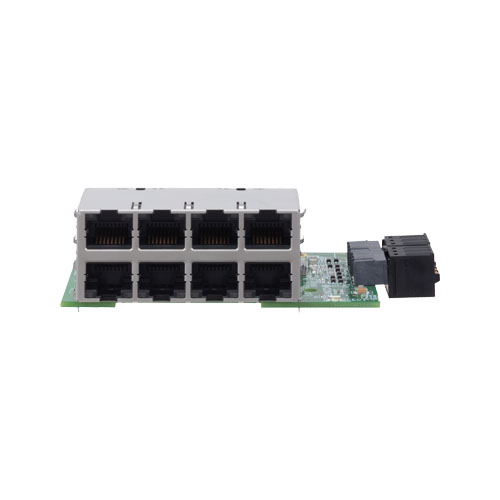

With its compact size, it corresponds to 100BASE-TX in eight all ports.

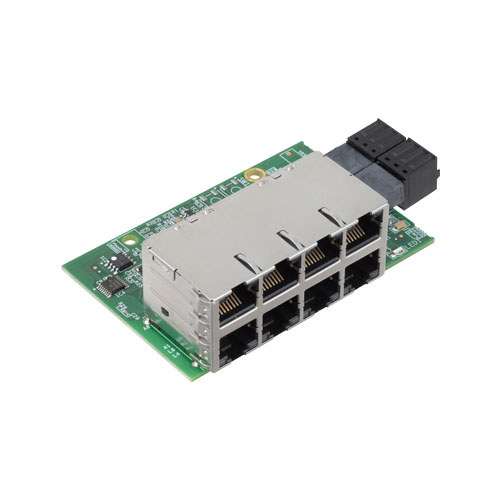

- This product contains eight ports for IEEE 802.3u (100BASE-TX)/ IEEE 802.3(10BASE-T) in the compact size.
-

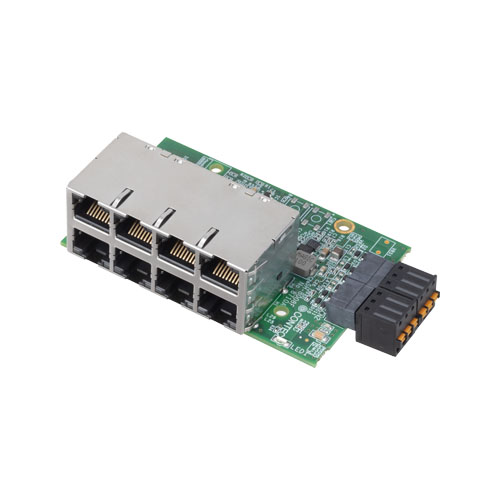

2-way power connector and reverse wiring protection within
- The product supports 2-way power supply. Even when one of the power systems fails during the operation, the product continues functioning. Our safety design supports the product to function even when wires are connected in reverse.
-
Adaptable to a wide range of temperature between -20 to +60°C
- The product is capable of operating in the temperature between -20 to +60°C. It can be installed in the various environments.
-
Compatible with 8 to 35VDC wide range power
- It is compatible with 8 to 35VDC wide range power and can be used in various power supply environment. In addition, An FG terminal is equipped in the power connector.
