Overview / Features

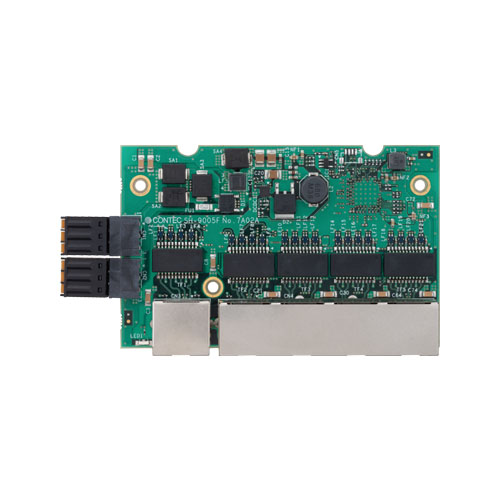

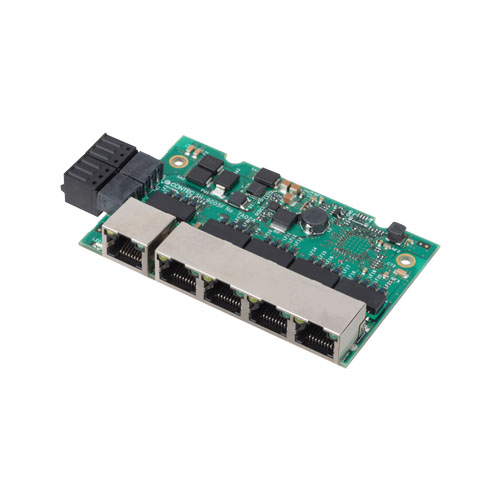

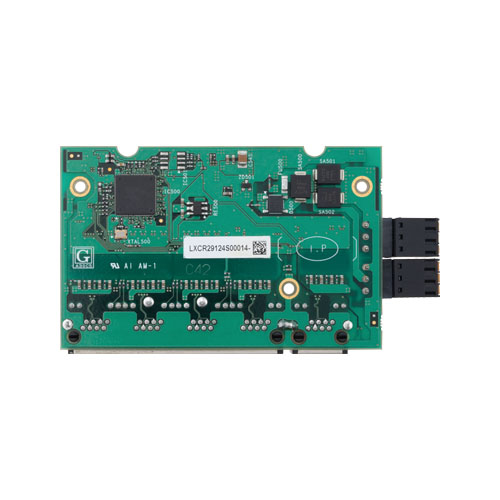

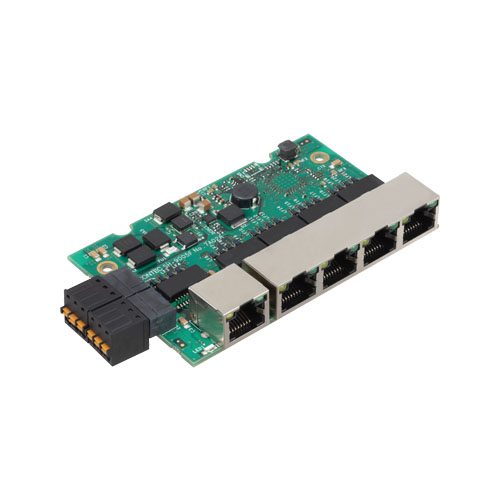

This product is a compact industrial 5-port switching hub board supporting 1000M. In addition, the Auto MDI/MDI-X features automatic negotiation.
An ideal product for the place where quietness is required as it contains no fan. The product can operate in the temperature between -20 and + 60°C. There are two supplies of power, and function that prevents power from connecting in reverse. When you build a system incorporating this product, read this Reference Manual carefully, and check the connection with external devices and installation conditions.
-

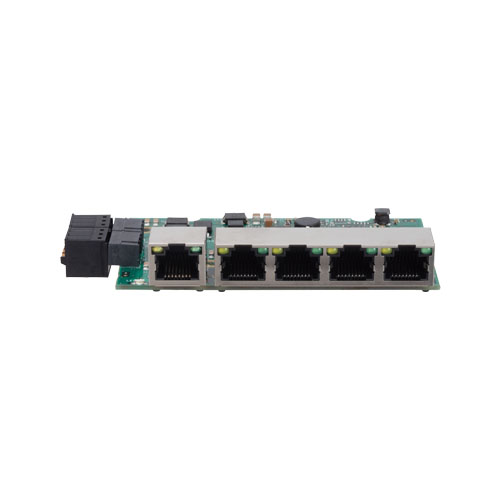

Five of 1000BASE-T ports are equipped
- The product has five ports which conform to IEEE 802.3ab(1000BASE-T) / IEEE 802.3u(100BASE-TX)/ IEEE 802.3(10BASE-T).
As a compact switching hub board for industrial applications, it is suitable for integration into customers' equipment.
-
Capable of operating in a wide-ranged power inputs, and features dual power support
- The product is capable of operating in a wide range of DC power between 8 and 35VDC. Moreover, dual power supports the product to continue to work even if one of the power supplies fails. It features a safety design that ensures normal operation even if the power supply is connected in reverse, and the power connector is equipped with an FG terminal.
-
Adaptable to a wide range of temperature between -20 to +60°C
- With a wide range of temperature (-20 to +60°C) specifications, providing superior environmental resistance and durability, and allowing dependable use in harsh industrial environments.
