CPS-PAV-AES1-JP EnOcean wireless sensor for CONPROSYS controllers / Stack indicator monitoring set (Only for Japan market)

Limited Stock

Standard Warranty3 yrs.

End of Repair Service: 2030/08/30

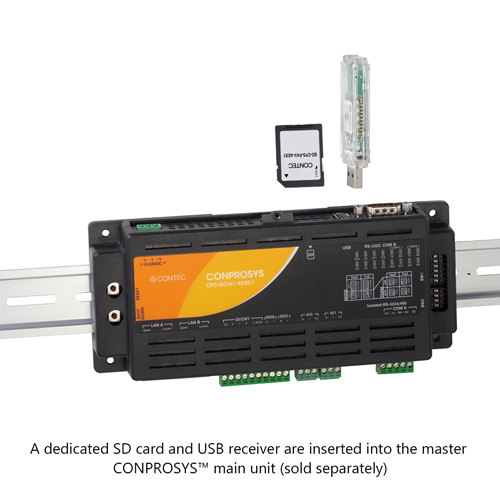

Selectes a master controller from the abundant CONPROSYS lineup
Easy setup by simply selecting and registering the slave unit ID on the setting screen.
All settings and operations are completed with a web browser.

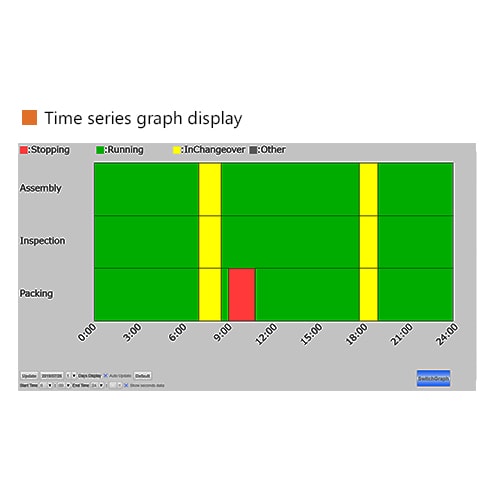

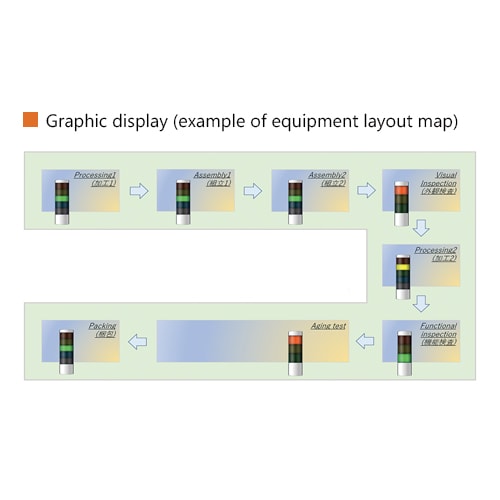

Ready-to-use monitoring screens (ANDON display, time series graph display, equipment map display) are available.
Up to 16 slave units can be connected to one master controller.
Email notification in real time when an error occurs.

IoT Solution：Visualizing Operation Statuses (Signal Tower Monitor)

Products for other markets

Ordering Information

Ordering Information

Model	Description	Certification

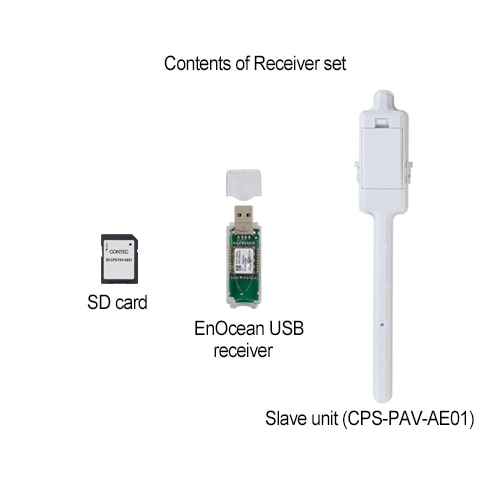

CPS-PAV-AES1-JP [Limited Stock]	[End of Repair Service : 30 August, 2030] Signal tower lights monitoring set (Program SD card, EnOcean USB receiver, Slave unit) (Only for Japan market)

Options

Controller unit

Item	Item Name
CPS-MC341-ADSC1-111	CONPROSYS M2M Controller - Integrated Type / 1x LAN + HUB / 4x DI / 2x DO / 2x AI / 2x CNT / 1x RS-232C / 1x RS-485
CPS-MC341-ADSC1-931	CONPROSYS M2M Controller - Integrated Type (FANUC MT-LINKi enabled) / OPC UA / MTConnect / CNC / 1x LAN + HUB / 4x DI / 2x DO / 2x AI / 2x CNT / 1x RS-232C / 1x RS-485
CPS-MC341-ADSC2-111	CONPROSYS M2M Controller - Integrated Type / 1x LAN + HUB / 4x DI / 2x DO / 2x AI / 2x CNT / 1x RS-232C / 2x RS-485
CPS-MC341-DS11-111	CONPROSYS M2M Controller - Integrated Type / 1x LAN + HUB / 8x DI / 8x DO / 1x RS-232C
CPS-MC341G-ADSC1-110	CONPROSYS M2M Controller - Integrated Type / 3G WAN / 1x LAN + HUB / 4x DI / 2x DO / 2x AI / 2x CNT / 1x RS-232C / 1x RS-485
CPS-MC341G-ADSC1-111	CONPROSYS M2M Controller - Integrated Type / 3G WAN (Japan Only) / 1x LAN + HUB / 4x DI / 2x DO / 2x AI / 2x CNT / 1x RS-232C / 1x RS-485
CPS-MC341Q-ADSC1-111	CONPROSYS M2M Controller - Integrated Type / 920MHz WLAN (Japan only) / 1x LAN + HUB / 4x DI / 2x DO / 2x AI / 2x CNT / 1x RS-232C / 1x RS-485
CPS-MCS341-DS1-111	CONPROSYS M2M Controller - Configurable Type / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
CPS-MCS341-DS1-131	CONPROSYS M2M Controller - Configurable Type (FANUC MT-LINKi enabled) / OPC UA / MTConnect / CNC / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
CPS-MCS341G-DS1-130	CONPROSYS M2M Controller - Configurable Type / 3G WAN (Japan only) / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
CPS-MG341-ADSC1-111	CONPROSYS M2M Gateway - Integrated Type / 1x LAN + HUB / 4x DI / 2x DO / 2x AI / 2x CNT / 1x RS-232C / 1x RS-485
CPS-MG341-ADSC1-931	CONPROSYS M2M Gateway - Integrated Type (FANUC MT-LINKi enabled) / OPC UA / MTConnect / CNC / 2x LAN / 4x DI / 2x DO / 2x AI / 2x CNT / 1x RS-232C / 1x RS-485
CPS-MG341G-ADSC1-930	CONPROSYS M2M Gateway - Integrated Type / OPC UA / MTConnect / CNC / 3G WAN / 2x LAN / 4x DI / 2x DO / 2x AI / 2x CNT / 1x RS-232C / 1x RS-485

Other Accessories

Item	Item Name

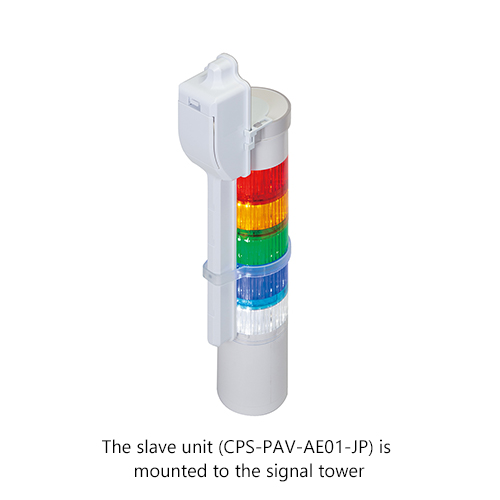

CPS-PAV-AE01-JP	EnOcean wireless sensor for CONPROSYS controllers / Stack indicator monitoring slave unit (Only for Japan market)
