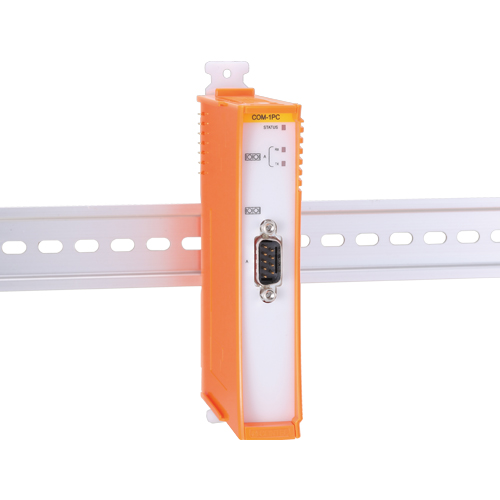

CPS-COM-1PC Serial Communication CONPROSYS I/O Module RS-232C 1ch / Isolation and Surge Protection

Standard Warranty3 yrs
Extended WarrantyAvailable

RS-232C serial communication, supporting 921,600bps to the maximum
Compact Design
Adaptable to a wide range of temperature between -20 and +60°C
Installation easy with DIN rail
Equipped with the LED for an operation check
No electrolytic capacitor

*
For details about an extended warranty, please contact us.

Specifications

Add-on Module

Series	CONPROSYS IO Module
Bus Specification	CONPROSYS stack bus
Size	CONPROSYS 1U
Used Connector	D-SUB 9-pin (Male)

Serial Comm.

Number of Channels	1x RS-232C [ASYNC]
Transmission Speed	15 ~ 921,600bps
Isolation Property	Isolated & Surge protection
Transmission Method	RS-232C [Asynchronous]

Supported OS

Supported OS	-

*
The supported OS depends on connected controllers (CPS-MCS341, CPS-PCS341, CPS-BXC200 etc.).
