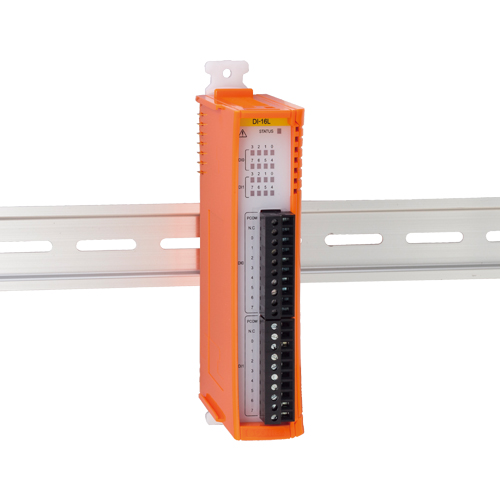

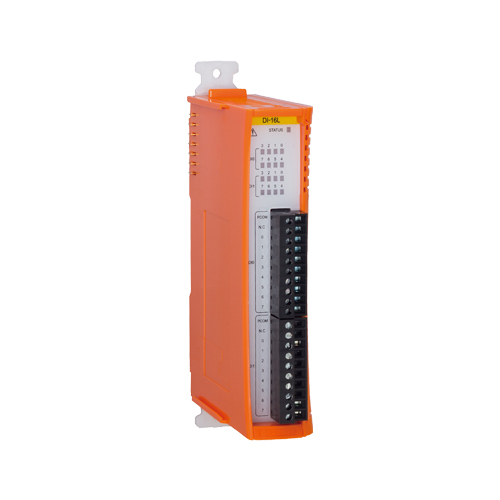

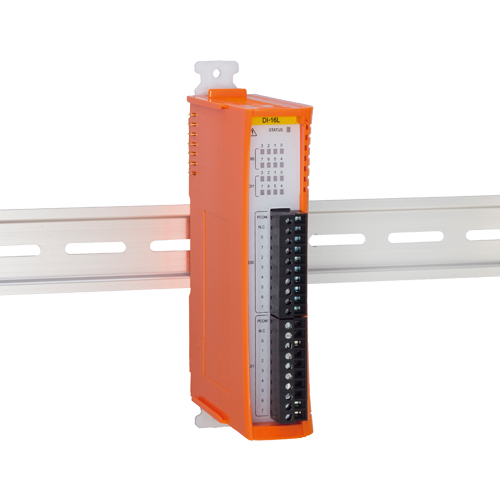

CPS-DI-16L Digital input CONPROSYS I/O module 16ch (isolated 12 - 24VDC)

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Optocoupler isolated input (supporting current sink output)
  • All of the input signals are usable as interrupt events.
  • Digital filter to prevent input signals from carrying noise or a chattering.
  • Output circuits include zener diodes for surge voltage protection.
  • Adaptable to a wide range of temperature between -20 and +60°C
  • Equipped with the LED for an operation check
  • *
    For details about an extended warranty, please contact us.

Overview / Features

This product is an extension module with isolated digital input interface and operates along with the stack type controller of our CONPROSYS series. CPS-DI-16L have the optocoupler isolated input 16 channels (supporting current sink output) whose response speed is 200μsec or less. All of the input signals are usable as interrupt events.

  • Optocoupler isolated input (supporting current sink output)
    • CPS-DI-16L have the optocoupler isolated input 16 channels (supporting current sink output) whose response speed is 200μsec or less.
  • All of the input signals are usable as interrupt events.
    • You can use all of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge.
  • Digital filter to prevent input signals from carrying noise or a chattering.
    • This product has a digital filter to prevent input signals from carrying noise or a chattering. All input terminals can be added a digital filter, and the setting can be performed by software.
  • Output circuits include zener diodes for surge voltage protection.
    • Zener diodes are connected to the output circuits to protect against surge voltages. The rated output is 35VDC, 100mA to the maximum per channel.
  • Adaptable to a wide range of temperature between -20 and +60°C
    • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
  • Equipped with the LED for an operation check
    • The product has the LED for an operation check, which helps you visually confirm the communication status of each interface.
