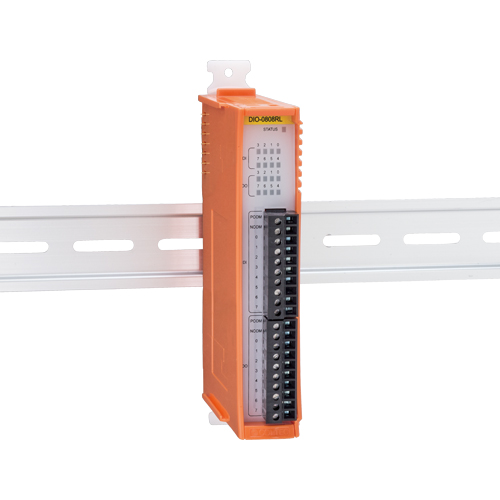

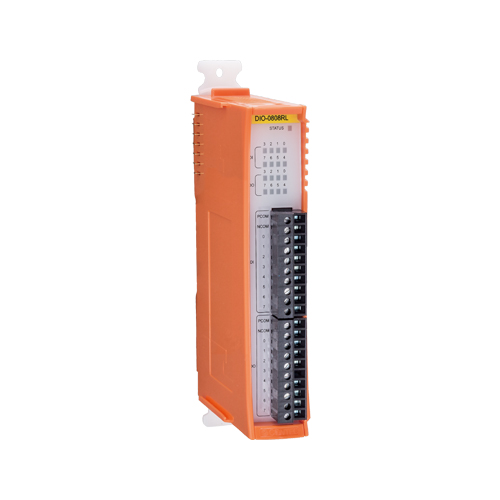

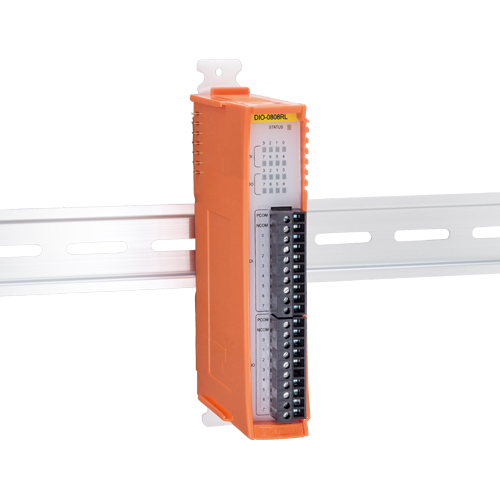

CPS-DIO-0808RL Digital I/O CONPROSYS I/O module 8ch/8ch (negative-common isolated 12 - 24VDC)

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Optocoupler isolated input (supporting current sink output) and optocoupler isolated open-collector output (current sink type)
  • All of the input signals are usable as interrupt events.
  • Digital filter to prevent input signals from carrying noise or a chattering.
  • Output circuits include zener diodes for surge voltage protection.
  • Adaptable to a wide range of temperature between -20 and +60°C
  • Compact Design
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description Certification
CPS-DIO-0808RL Digital I/O CONPROSYS I/O module 8ch/8ch (negative-common isolated 12 - 24VDC)
  • CE marking
  • FCC compliant
  • UL
  • VCCI

Options

Coupler module

Item Item Name
CPS-ECS341-1-011 CONPROSYS Remote I/O - Communication Coupler / EtherCAT Slave / 2x LAN

Controller unit

Item Item Name
CPS-MCS341-DS1-111 CONPROSYS M2M Controller - Configurable Type / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
CPS-MCS341-DS1-131 CONPROSYS M2M Controller - Configurable Type (FANUC MT-LINKi enabled) / OPC UA / MTConnect / CNC / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
CPS-MCS341G-DS1-130 CONPROSYS M2M Controller - Configurable Type / 3G WAN (Japan only) / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
CPS-MGS341-DS1-131 CONPROSYS M2M Gateway - Stackable Type CPU Module / OPC UA / MT connect / CNC / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
CPS-MGS341G5-DS1-130 CONPROSYS M2M Gateway - Stackable Type CPU Module / 4G LTE / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
CPS-PCS341EC-DS1-1201 CONPROSYS PAC Series - Configurable Type (IEC 61131-3 CODESYS) / EtherCAT Master / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
CPS-PCS341MB-DS1-1201 CONPROSYS PAC Series - Configurable Type (IEC 61131-3 CODESYS) / Modbus Master / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C

Development Support Tools

Item Item Name
DAQ-LV-WIN LabVIEW Data Acquisition Library

Power Supply / AC Adapter

Item Item Name
CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
