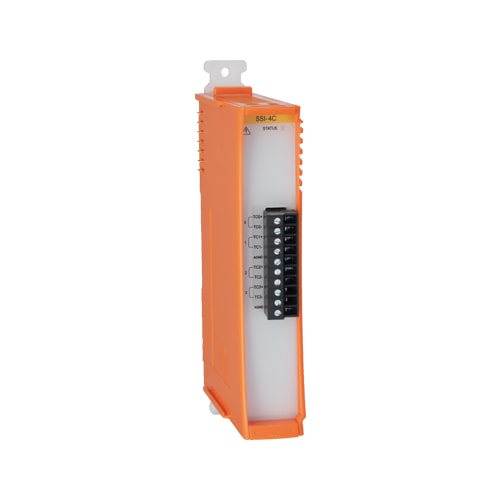

CPS-SSI-4C Thermocouple Module CONPROSYS I/O Module / 4ch

NEW

Standard Warranty3 yrs
Extended WarrantyAvailable

Compatible with various types of thermocouple inputs
Cold junction compensation function within
Adaptable to a wide range of temperature between -20 to 60°C (-4°F to 140°F)
Installation easy with two pieces of terminal support and DIN rail
Equipped with the LED for an operation check
No electrolytic capacitor

*
For details about an extended warranty, please contact us.

Specifications

Add-on Module

Series	CONPROSYS IO Module
Bus Specification	CONPROSYS stack bus
Size	CONPROSYS 1U
Used Connector	2x 3.81mm-pitch 10-pin 2-piece terminal block

Analog I/O

Input Channels	Differential 4-ch
Input Range	Type E thermocouple; Type J thermocouple; Type K thermocouple; Type N thermocouple; Type R thermocouple; Type S thermocouple; Type T thermocouple
ADC Resolution	24-bit
Sampling Rate	-
Input Buffer Memory	-
Output Channels	-
Output Range	-
DAC Resolution	-
Update rate	-
Output Buffer Memory	-

Digital I/O

Input Channels	-
Output Channels	-
Bi-directional I/O Channels	-
Response Time (Input)	-
Response Time (Output)	-
Operating Voltage (Input)	-
Operating Voltage (Output)	-
Input Circuit	-
Output Circuit	-
Built-in Power Supply	-

Supported OS

Supported OS	-

*
The supported OS depends on connected controllers (CPS-MCS341 etc.).
