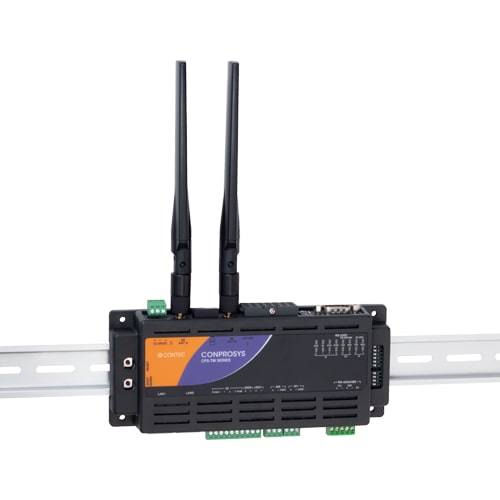

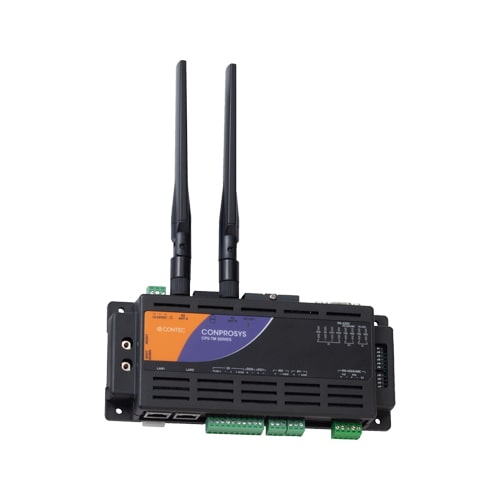

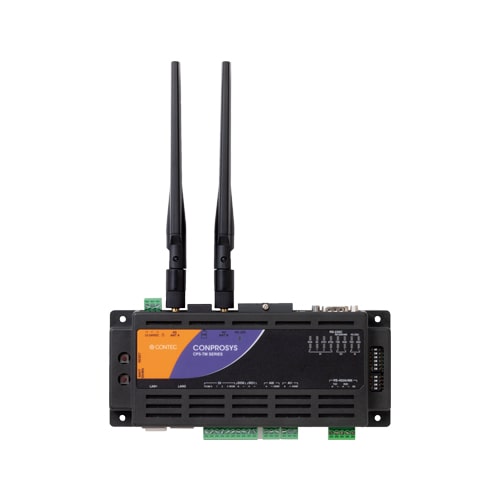

CPS-TM341G5MB-ADSC1-931 CONPROSYS Series | Multi-Function Telemeter / 4G Model (Product is available only in Japan.)

Standard Warranty3 yrs
Extended WarrantyAvailable

Various available interfaces
Operable with ambient temperatures from −20°C to 60°C
Operation is possible by configuring only the settings required for remote monitoring
CONPROSYS HMI screen creation software
Support for PLCs and other Modbus slave devices
Web-based operation

*

For details about an extended warranty, please contact us

List of confirmed SIM cards

Specifications

Controller Unit

Series
Communication Ports	Ethernet (LAN); 4G LTE Cat.4 Wireless（WAN）
Programming	-
Stack bus	-
Function	CDS data transfer (https); FacilityView data transmission; Modbus master

Digital I/O

Input Channels	4-ch
Output Channels	2-ch
Bi-directional I/O Channels	-
Response Time (Input)	200μsec (max.)
Response Time (Output)	2msec (max.)
Operating Voltage (Input)	12 to 24VDC; -
Operating Voltage (Output)	-
Input Circuit	Opto-isolated input (for both current sink and source output)
Output Circuit	Semiconductor relay output
Built-in Power Supply	12VDC

Analog I/O

Input Channels	Differential 2-ch
Input Range	0 to 20mA
ADC Resolution	12-bit
Sampling Rate	-
Input Buffer Memory	-
Output Channels	-
Output Range	-
DAC Resolution	-
Update rate	-
Output Buffer Memory

Counter

Number of Channels	2-ch
Counting System	24-bit Up count
Response speed	1KHz

Serial Comm.

Number of Channels	1x RS-232C [ASYNC]; 1x RS-422A/485 [ASYNC]
Transmission Speed	300 ~ 115,200bps; 4,800 ~ 115,200bps
Isolation Property	Isolated; -
Transmission Method	RS-232C [Asynchronous]; RS-422A/485 [Asynchronous]
