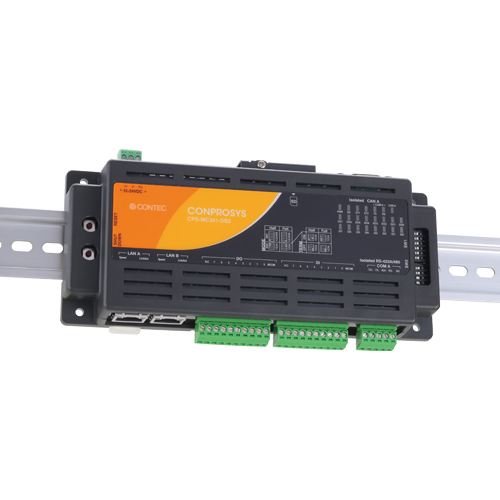

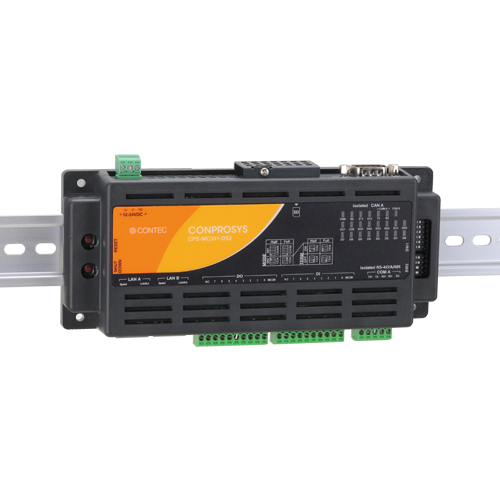

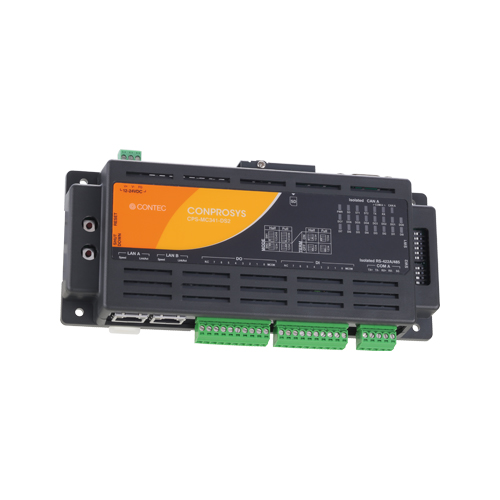

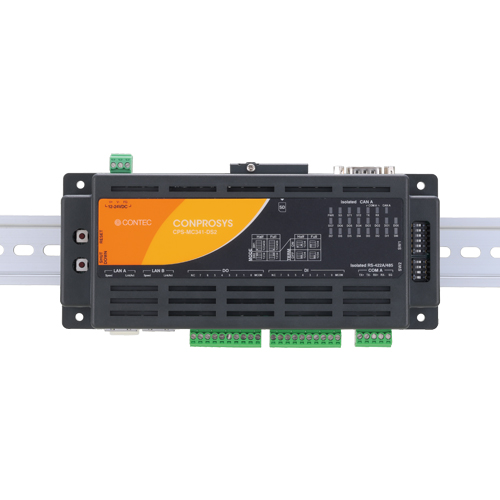

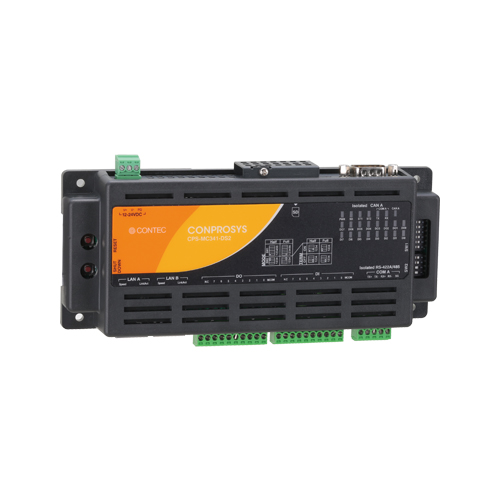

CPS-MC341-DS2-911 CONPROSYS M2M Controller - Integrated Type / 1x LAN + HUB / 8x DI / 8x DO / 1x RS-485 / 1x CAN

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Measurement and Upload
  • Web Monitoring
  • Web Task Script
  • Message Communication Function
  • Compact Design
  • Adaptable to a temperature range between -20 and 60°C
  • *
    For details about an extended warranty, please contact us.


Controller Unit

Communication Ports Ethernet (LAN)
Stack bus -
Function CDS data transfer (https); Modbus/TCP slave

Digital I/O

Input Channels 8-ch
Output Channels 8-ch
Bi-directional I/O Channels -
Response Time (Input) 200μsec (max.)
Response Time (Output) 200μsec (max.)
Operating Voltage (Input) -
Operating Voltage (Output) -
Input Circuit Opto-isolated input (for sink current output)
Output Circuit Opto-isolated open-collector output (current sink type)
Built-in Power Supply 12VDC

Analog I/O

Input Channels -
Input Range -
ADC Resolution -
Sampling Rate -
Buffer Memory
Output Channels -
Output Range -
DAC Resolution -
Update rate -


Number of Channels -
Counting System -
Response speed -

Serial Comm.

Number of Channels 1x RS-422A/485 [ASYNC]; 1x CAN
Transmission Speed 300 ~ 115,200bps
Isolation Property
Transmission Method
