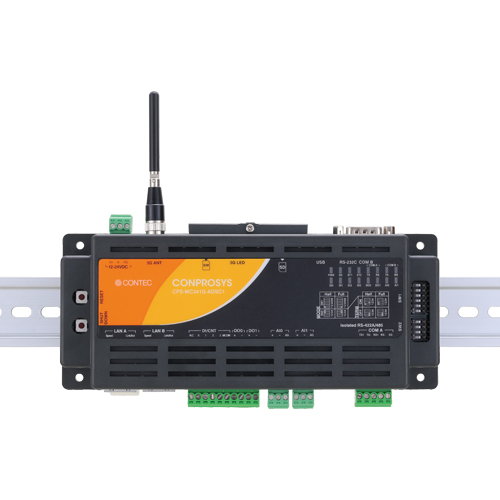

CPS-MC341G-ADSC1-110 CONPROSYS M2M Controller - Integrated Type / 3G WAN / 1x LAN + HUB / 4x DI / 2x DO / 2x AI / 2x CNT / 1x RS-232C / 1x RS-485

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Measurement and Upload
  • Web Monitoring
  • Web Task Script
  • Message Communication Function
  • Compact Design
  • Adaptable to a temperature range between -20 and 60°C
  • *
    For details about an extended warranty, please contact us.

Overview / Features

This product is a M2M controller with isolated RS-422A/485, isolated digital input/output, isolated counter input, inter-channel isolated analog input, RS-232C, LAN interface, and 3G network communication module. It is equipped with the ARM®Cortex®-A8 processor (600MHz) and the 512MB DDR3-SDRAM system memory. On-board NOR-FLASH is utilized for a booting device. You can perform all processes on a web browser from the development to the operation. The functions such as Web monitoring of I/O information, alarm processing by I/O information, task divergence enable you to create a Cloud System at low cost and in a short time. This product is in compliant with the following standards: CE, FCC, TELEC, UL and VCCI.

  • Measurement and Upload
    • The product measures data with an external sensor and uploads them to the Cloud server.
  • Web Monitoring
    • The product contains a Web server. Even with the PC located remotely, I/O information can be monitored and updated through a Web browser. On the monitoring screen, the standard GUI parts (graphic, slider, button, etc.) can be freely arranged. All operations including monitoring layout, making relations with I/O information, can be achieved through a Web browser.
  • Web Task Script
    • By combining icons such as arithmetic operations, conditional branching, data outputting, you can set up the executions or its processes like drawing them in the flowchart. All operations can be completed through a Web browser.
  • Message Communication Function
    • With the RS232C, the RS-422A/RS-485 or the Ethernet device (TCP/UDP), up to 10 links can be set to send or receive messages. Message communication can be accomplished from Web task script.
  • Compact Design
    • Compact design, 188.0(W) × 78.0(D) × 30.5(H)mm, features flexibility in installation.
  • Adaptable to a temperature range between -20 and 60°C
    • The product is capable of operating in the temperature between -20 and 60°C. It can be installed in the various environments.
