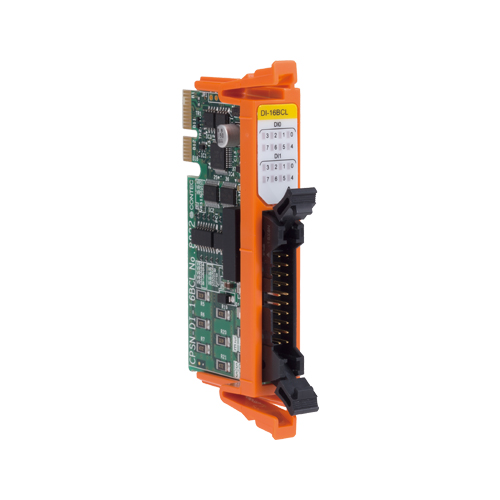

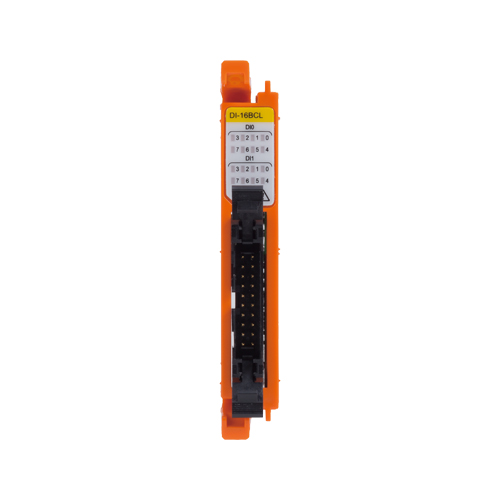

CPSN-DI-16BCL Digital input CONPROSYS nano I/O module 16ch (12VDC on-board power supply isolated 12 - 24VDC)

  • NEW
  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Opto-coupler isolated input
  • Internal circuit power supply and external power supply
  • All of the input signals are usable as interrupt events
  • Equipped with a digital filter function to prevent false recognition of input signals due to noise and chattering
  • Input counter function
  • Adaptable to a wide range of temperature between -20 and +60°C
  • *
    For details about an extended warranty, please contact us.

Overview / Features

This product is an expansion I/O module that adds an opto-coupler isolated input interface with a response speed of 200 μs or less to the CPU unit of the CONPROSYS nano series. The product is equipped with 16 inputs and 1 common that support current sink/source output, and the internal circuit power supply of 12V and the external circuit power supply of 12-24V can be switched with the switch.

  • Opto-coupler isolated input
    • The product contains 16 channels of opto-coupler isolated input whose response speed is 200μsec or less. Also, current sink outputs and current source outputs are switchable with the switch.
  • Internal circuit power supply and external power supply
    • The switch is equipped to switch between the internal circuit power supply of 12V and the external circuit power supply of 12-24V.
  • All of the input signals are usable as interrupt events
    • You can use all of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge.
  • Equipped with a digital filter function to prevent false recognition of input signals due to noise and chattering
    • This product is equipped with a digital filter that can prevent input signal noise and chattering. The input digital filter can be applied to all input terminals individually, and configuration can be performed using the software.
  • Input counter function
    • Digital input and counter input can be switched per channel. The counter values are automatically saved upon turning off the power.
  • Adaptable to a wide range of temperature between -20 and +60°C
    • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
