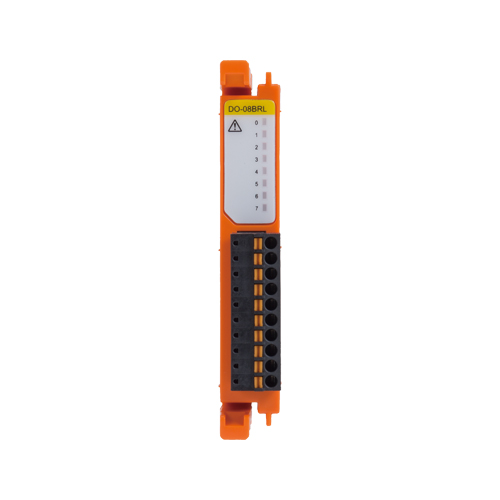

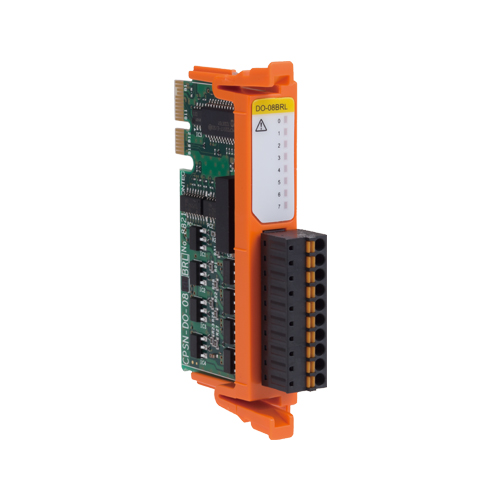

CPSN-DO-08BRL Digital output CONPROSYS nano I/O module 8ch (negative-common 12VDC on-board power supply isolated 12VDC)

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Opto-coupler isolated Output
  • Internal circuit power supply
  • Output circuits include zener diodes for surge voltage protection.
  • Adaptable to a wide range of temperature between -20 and +60°C
  • Equipped with the LED for an operation check
  • No electrolytic capacitor
  • *
    For details about an extended warranty, please contact us.

Overview / Features

This product is an expansion I/O module that adds a digital output interface to the CPU unit of the CONPROSYS nano series. It contains 8 channels of opto-coupler isolated output (current source type) whose response speed is 200μsec or less. This products internal circuit also has a built-in power supply, so no external circuit power supply is necessary.

  • Opto-coupler isolated Output
    • This product contains 8 channels of opto-coupler isolated output (current source type) whose response speed is 200μsec or less.
  • Internal circuit power supply
    • The CPSN-DO-08BRL's internal circuit has a built-in power supply, so no external circuit power supply is necessary.
  • Output circuits include zener diodes for surge voltage protection.
    • Zener diodes are connected to the output circuits to protect against surge voltages. The rated output is 12VDC, 56mA to the maximum (the total value of all output channels)
  • Adaptable to a wide range of temperature between -20 and +60°C
    • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
  • Equipped with the LED for an operation check
    • The product has the LED for an operation check, which helps you visually confirm the communication status of each interface.
  • No electrolytic capacitor
    • Without an electrolytic capacitor, which has a limited life, we are creating the product with a longer life.
