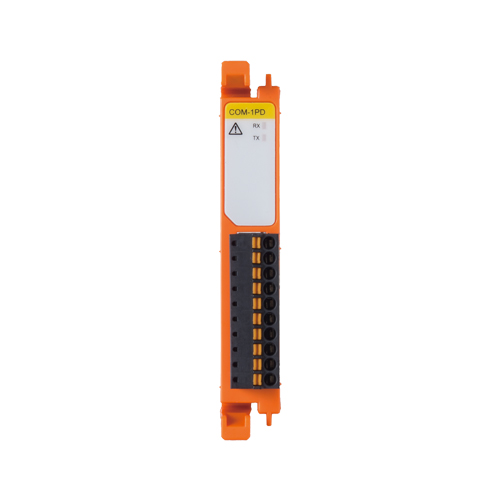

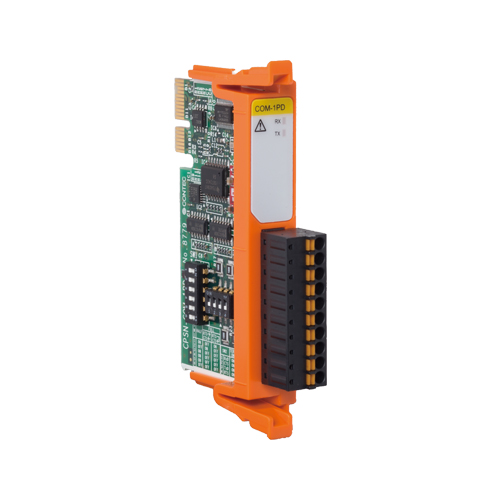

CPSN-COM-1PD Serial Communication CONPROSYS nano Series I/O Module RS-422A/485 1ch / Isolation and Surge Protection

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

This product is an expansion I/O module that adds a COM port complied with RS-422A/485 to the CPU unit of the CONPROSYS nano series.
One channel of RS-422A/485 communication port is supplied.

• RS-422A/485 serial communication and support maximum of 921,600bps

  • This product has one channel of a serial port complied with RS-422A/485. The baud rate can be set from 4 to 921,600bps.
• Easy installation and removal

  • This product can be installed in and removed from the CPU unit without any tools.
• Adaptable to a wide range of temperature between -20 and +60°C

  • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
• Equipped with the LED for an operation check

  • The product has the LED for an operation check, which helps you visually confirm the communication status of each interface.
• No electrolytic capacitor

  • Without an electrolytic capacitor, which has a limited life, we are creating the product with a longer life.
