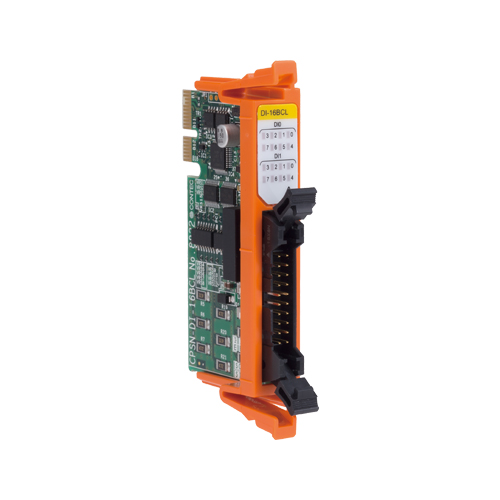

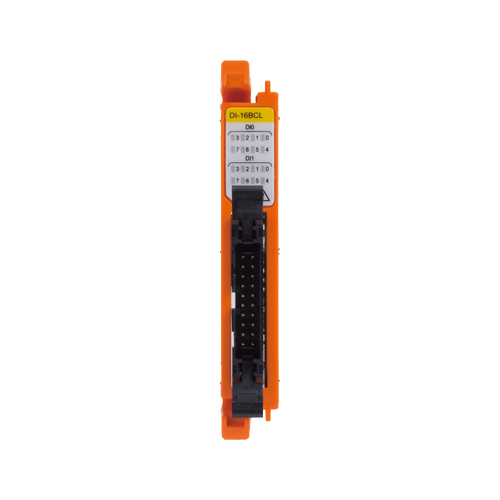

CPSN-DI-16BCL Digital input CONPROSYS nano Series I/O module 16ch (12VDC on-board power supply isolated 12 to 24VDC)

Standard Warranty3 yrs
Extended WarrantyAvailable

Opto-coupler isolated input
Internal circuit power supply and external power supply
All of the input signals are usable as interrupt events
Equipped with a digital filter function to prevent false recognition of input signals due to noise and chattering
Input counter function
Adaptable to a wide range of temperature between -20 and +60°C

*
For details about an extended warranty, please contact us.

BUY NOW - U.S. Customers can purchase online in the Contec Americas eShop

Specifications

Add-on Module

Series	CONPROSYS nano(Modular remote I/O)
Bus Specification	CONPROSYS nano slot
Size	CONPROSYS nano 1U
Used Connector	1x MIL type pin header 20-pin (Male)

Digital I/O

Input Channels	16-ch
Output Channels	-
Bi-directional I/O Channels	-
Response Time (Input)	200μsec (max.)
Response Time (Output)	-
Operating Voltage (Input)	12VDC; 12 to 24VDC
Operating Voltage (Output)	-
Input Circuit	Opto-isolated input (for sink current output); Opto-isolated input (for source current output)
Output Circuit	-
Built-in Power Supply	12VDC

Supported OS

Supported OS	-

*
The supported OS depends on connected coupler units (CPSN-MCB271, CPSN-PCB271 etc.).
