CPSN-MCB271-1-081 CONPROSYS nano Series Remote I/O - Communication Coupler / Modbus slave / 8x Slot / 2x LAN

Standard Warranty3 yrs
Extended WarrantyAvailable

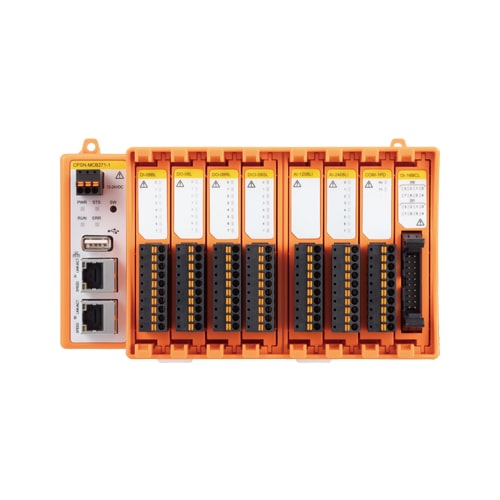

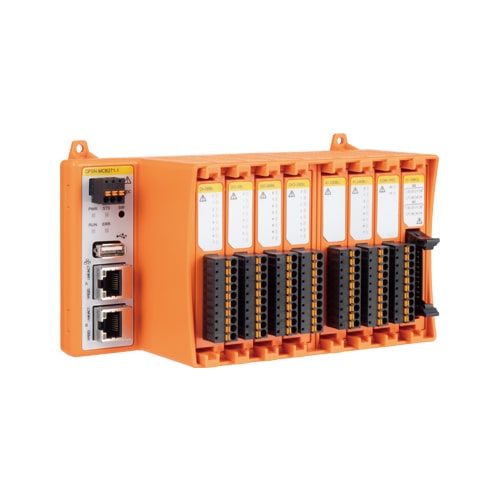

I/O module expansion

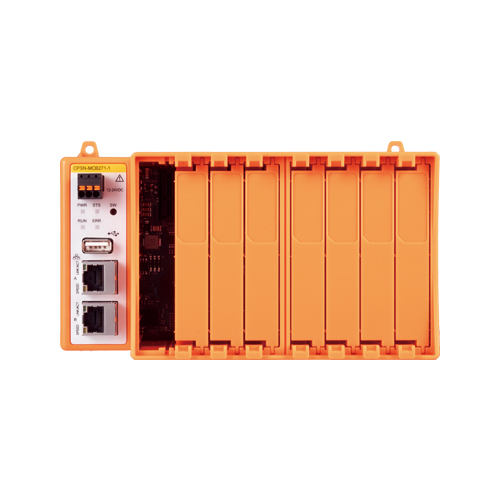

Easy installation and removal of I/O modules
Adaptable to a wide range of temperature between -20 to 60°C

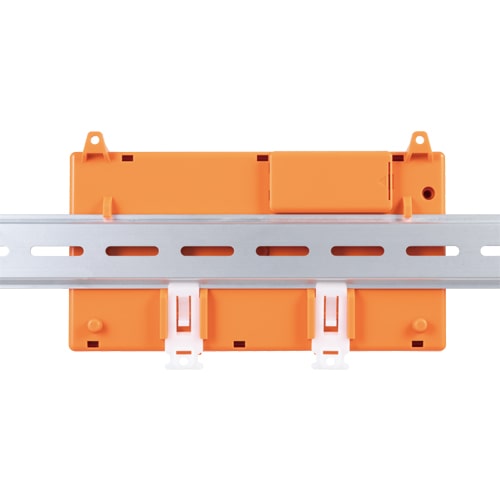

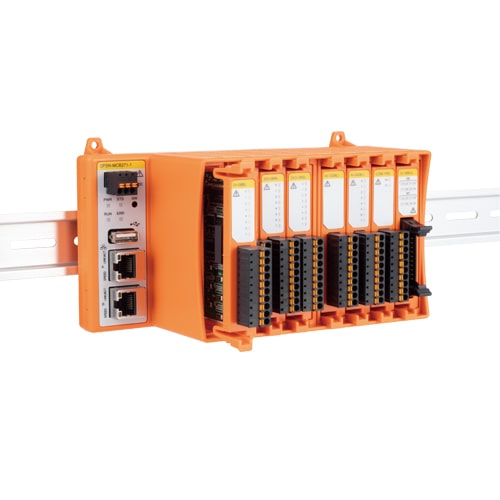

Installation easy with a two-piece terminal on DIN or with screws
2 ports of LAN port containing a switch function
Windows/Linux support device driver

*
For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

BUY NOW - U.S. Customers can purchase online in the Contec Americas eShop

Model	Description	Certification
CPSN-MCB271-1-081	CONPROSYS nano Series Remote I/O - Communication Coupler / Modbus slave / 8x Slot / 2x LAN

BUY NOW - U.S. Customers can purchase online in the Contec Americas eShop

Options

Analog I/O

Item	Item Name
CPSN-AI-1208LI	Analog Input Module for CONPROSYS nano Series I/O Module 8ch(12bit, 10μsec/ch) / Bus Isolation
CPSN-AI-2408LI	Analog Input Module for CONPROSYS nano Series I/O Module 8ch(24bit, 208μsec/ch) / Bus Isolation
CPSN-AO-1602LC	Analog Output CONPROSYS nano Series I/O Module 2ch (16bit, Voltage / Current) / Inter-channel Isolation
CPSN-SSI-4C	Thermocouple Module for CONPROSYS nano Series I/O Module 4ch(J, K, E, N, R, S, T Type, 251ms/ch) / Bus Isolation

Digital I/O

Item	Item Name
CPSN-DI-08BL	Digital input CONPROSYS nano Series I/O module 8ch (12VDC on-board power supply isolated 12VDC)
CPSN-DI-08L	Digital input CONPROSYS nano Series I/O module 8ch (isolated 12 to 24VDC)
CPSN-DI-16BCL	Digital input CONPROSYS nano Series I/O module 16ch (12VDC on-board power supply isolated 12 to 24VDC)
CPSN-DIO-08SL	Digital I/O CONPROSYS nano Series I/O module Bi-directional 8ch (isolated 5 to 24VDC)
CPSN-DO-08BL	Digital output CONPROSYS nano Series I/O module 8ch (on-board power supply isolated 12VDC)
CPSN-DO-08BRL	Digital output CONPROSYS nano Series I/O module 8ch (negative-common 12VDC on-board power supply isolated 12VDC)
CPSN-DO-08L	Digital output CONPROSYS nano Series I/O module 8ch (isolated 12 to 24VDC)
CPSN-DO-08RL	Digital output CONPROSYS nano Series I/O module 8ch (negative-common isolated 12 to 24VDC)
CPSN-DO-16BL	Digital output CONPROSYS nano Series I/O module 16ch (opto-coupler driving power supply)
CPSN-DO-16L	Digital output CONPROSYS nano Series I/O module 16ch (isolated 12 to 24VDC)
CPSN-RRY-4PCA	Reed relay contact output CONPROSYS nano Series I/O module 4ch (Contacts A isolated up to 125VAC or up to 30VDC)

Counter

Item	Item Name
CPSN-CNT-3201I	Counter CONPROSYS nano Series I/O module 1ch (32bit Up/Down count 500kHz) / rotary encoder and linear scale interface / Isolated

Serial comm.

Item	Item Name
CPSN-COM-1PD	Serial Communication CONPROSYS nano Series I/O Module RS-422A/485 1ch / Isolation and Surge Protection

Device Drivers

Item	Item Name
API-AIO(LNX)	Analog I/O Driver for Linux
API-AIO(WDM)	Windows version High-efficiency Analog I/O Driver
API-CNT(LNX)	Linux version Counter Input Driver
API-CNT(WDM)	Windows Driver for Counter Input Driver
API-DIO(LNX)	Linux version Digital I/O Driver
API-DIO(WDM)	Windows Driver for Digital I/O Driver
API-SSI(LNX)	Sensor Input driver for Linux

Development Support Tools

Item	Item Name
DAQ-DNC-FE	A collection of .NET components for DAQfast measurement system development.
DAQ-LIBMB-LNX	DAQfast Modbus Communication Library for Linux
DAQ-LIBMB-WIN	DAQfast Modbus Communication Library for Windows
DAQ-LV-WIN	LabVIEW Data Acquisition Library

Power Supply / AC Adapter

Item	Item Name
CPS-PWD-30AW24-01	CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
CPS-PWD-90AW24-01	CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
