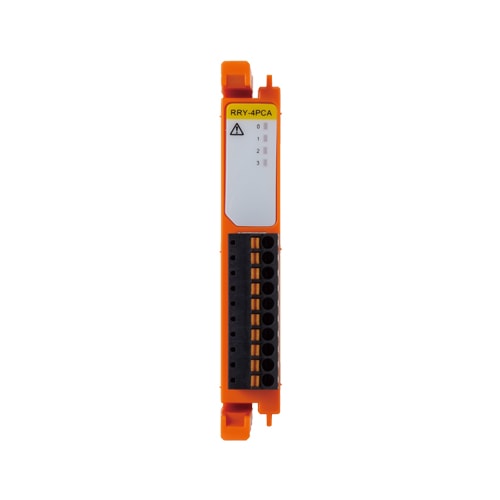

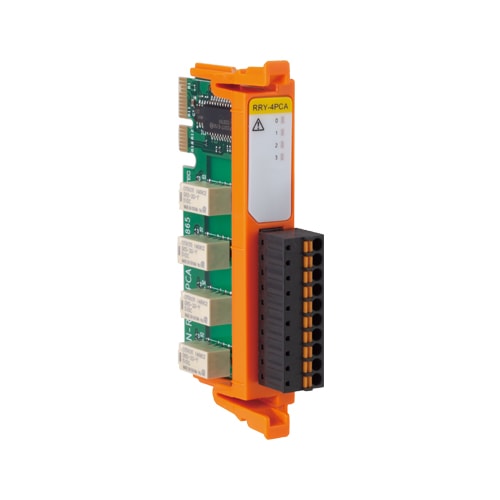

CPSN-RRY-4PCA Reed relay contact output CONPROSYS nano Series I/O module 4ch (Contacts A isolated up to 125VAC or up to 30VDC)

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

This product is an expansion I/O module that adds relay outputs (Contacts A) to the CPU unit of the CONPROSYS nano series. Four channels of differential inputs are provided for one module.

• Independent Common Relay Outputs (Contacts A)

  • Four channels of independent common relay outputs (form A) are provided.
    Independent common can support a different external power supply per channel (one common).
• Bus Isolated by Relays

  • As Bus is isolated from the output interfaces by relays, this product has excellent noise performance.
• LED indicator for status check

  • On/Off of the relay outputs can be visually checked with the LED indicator.
• Easy installation and removal

  • This product can be installed in and removed from the CPU unit without any tools.
• Adaptable to a wide range of temperature between -20 and 60°C

  • The product is capable of operating in the temperature between -20 and 60°C. It can be installed in the various environments.
• No electrolytic capacitor

  • Without an electrolytic capacitor, which has a limited life, we are creating the product with a longer life.
