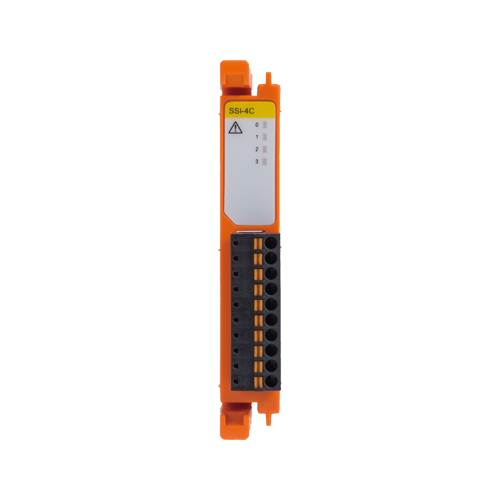

CPSN-SSI-4C Thermocouple Module for CONPROSYS nano Series I/O Module 4ch(J, K, E, N, R, S, T Type, 251ms/ch) / Bus Isolation

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

This product is an expansion I/O module that adds a thermocouple interface to the CPU unit of the CONPROSYS nano series. Four channels of differential inputs are provided for one module.

• Compatible with various types of thermocouple inputs

  • This product is compatible with a wide range of thermocouple input types such as J(IEC60584-1), K(IEC60584-1), E(IEC60584-1), N(IEC60584-1), R(IEC60584-1), S(IEC60584-1), and T(IEC60584-1).
• Cold junction compensation function

  • As cold junction compensation is integrated in the product, there is no need to install a temperature sensor for cold junction compensation externally, and temperature can be measured simply by connecting a thermocouple.
• LED indicator for status check

  • The error status of thermocouple such as disconnected, not-connected, or sensor circuit trouble can be checked with the LED indicator.
• Easy installation and removal

  • This product can be installed in and removed from the CPU unit without any tools.
• Adaptable to a wide range of temperature between -20 and +60°C

  • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
• No electrolytic capacitor

  • Without an electrolytic capacitor, which has a limited life, we are creating the product with a longer life.
