Overview / Features

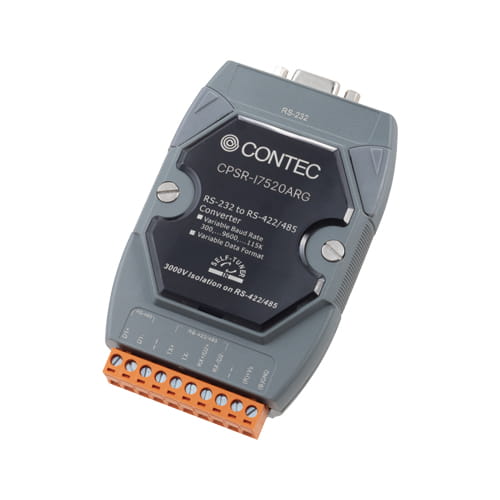

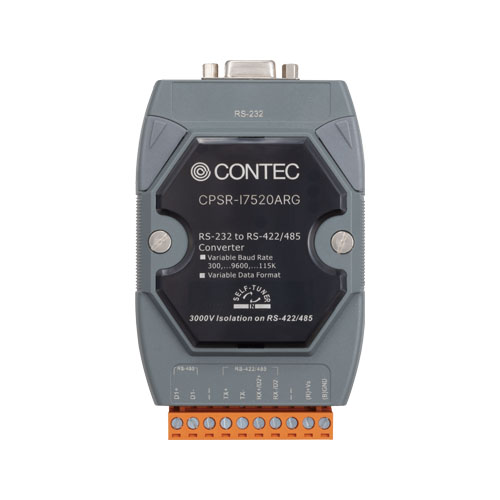

This converter converts equipment RS-232C signals to RS-422A/485, enabling long-distance communication of up to 1200 m. It supports communication speeds of up to 115,200bps, and employs a 10~30VDC wide-range power supply and a 1.2 W low-power design. The compact design, which can be mounted on a 35 mm DIN rail, facilitates long-distance serial communication of existing equipment.
-
Compact design for DIN rail
- Compatible with 35 mm DIN rail. Compact design that can be installed in a small empty space in the control panel or equipment.
-
Wide range power supply support
- It supports wide-range power supply using a 10~30VDC DC power supply. It also consumes less than 1.2 W.
-
Wide temperature range design with operating ambient temperature of -25~75°C (−13 to 167°F)
- Wide temperature range design with operating ambient temperature of -25~75°C (−13 to 167°F). Robust design that can be used in outside temperature environments with large temperature variations.
-
ESD protection for RS-232/422A/485 data lines
- The RS-422A/485 data line is ESD protected by an isolation circuit. Protects equipment from failure.
