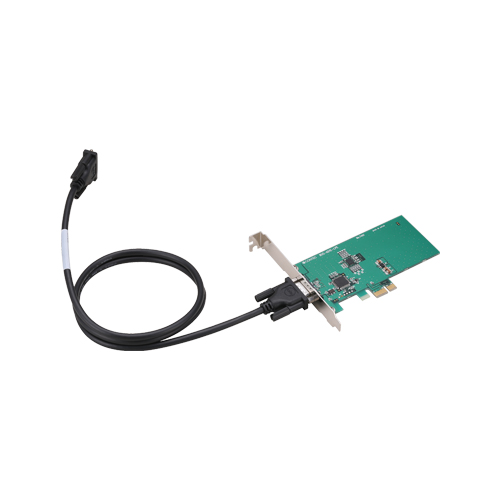

EAD-CE-LPE Expansion Adapter for PCI Express Slot

Discontinued

Standard Warranty1 yr
Extended WarrantyAvailable

End of Repair Service: 2027/05/20

Check a compatible replacement

* The end of repair date may change depending on the situation.

An expansion chassis can be selected according to the number of slots needed for the PCI or PCI Express(x 1) bus as well as the board size.
As your PC is turned ON or OFF, the expansion chassis can also be turned ON or OFF, accordingly.

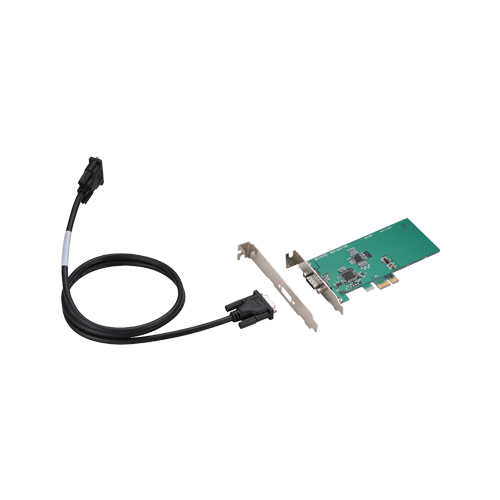

Support for both of Low Profile and standard size slots (interchangeable with a bundled bracket).

*
For details about an extended warranty, please contact us.

Ordering Information

Replacement Product

Model	Definition
Expansion Adapter for PCI Express Slot EAD-DE-LPE	The connector of DE type (new model) with Bus-adapter, Expansion chassis and Connection cable is different from CE type (old model). DE type can not be connected to BE type. ex.) The bus-adapter (DE type) and expansion chassis (CE type) can not be connected. The bus-adapter (CE type) and expansion chassis (DE type) can not be connected.

Ordering Information

Model	Description	Certification
EAD-CE-LPE [Discontinued]	[End of Repair Service : 20 May, 2027] Expansion Adapter for PCI Express Slot

Options

Expansion box

Item	Item Name
ECH-PCI-CE2-H4A	PCI Bus Expansion Chassis Short size, 4-Slots, with power supply
ECH-PCI-CE2-H7A	PCI Bus Expansion Chassis Short size,7-Slots
ECH-PCI-CE-F2B	PCI Bus Expansion Chassis Long size, 2-Slots, BLACK
ECH-PCI-CE-F4B	PCI Bus Expansion Chassis Long size, 4-Slots, BLACK
ECH-PCI-CE-H13A	PCI Bus Expansion Chassis Short size, 13-Slots, with power supply
ECH-PCI-CE-H2B	PCI Bus Expansion Chassis Short size, 2-Slots, BLACK
ECH-PCI-CE-H4A	PCI Bus Expansion Chassis Short size, 4-Slots, with power supply
ECH-PCI-CE-H4B	PCI Bus Expansion Chassis Short size, 4-Slots, BLACK
ECH-PCI-CE-H4D	PCI Bus Expansion Chassis Short size, 4-Slots, Silver
ECH-PCI-CE-H7A	PCI Bus Expansion Chassis Short size, 7-Slots, with power supply
ECH-PE-CE-F2B	PCI Express Expansion Chassis Long size, 2-Slots, BLACK
ECH-PE-CE-H2B	PCI Express Expansion Chassis Short size, 2-Slots, BLACK

Cable

Item	Item Name
CB-CE-3	Cable for PCI Express (3m)

Extended Warranty Service

Item	Item Name
ESP-F5	Extended warranty service package (5 years service course) (Japan only)
ESP-S1	Extended warranty service package (Extension one year) (Japan only)
