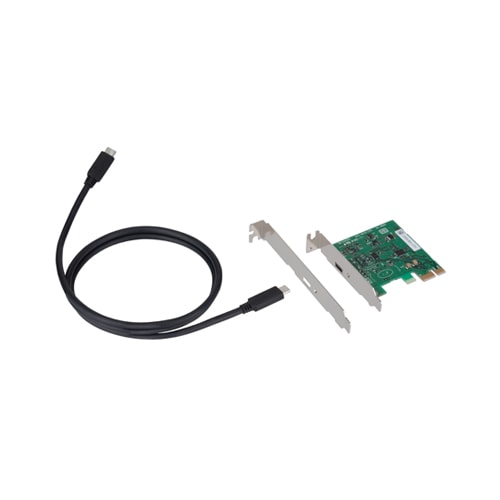

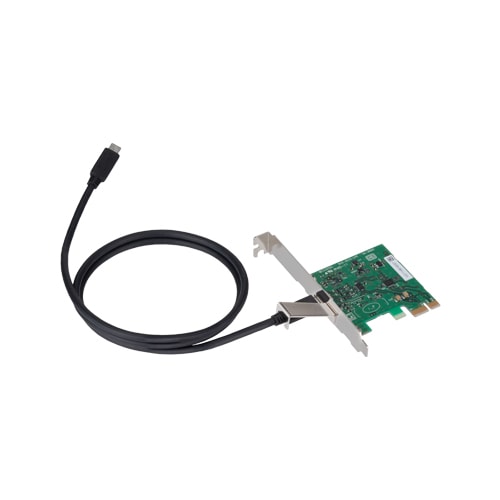

EAD-DE-LPE Expansion Adapter for PCI Express Slot

  • Standard Warranty1 yr
  • Extended WarrantyAvailable
  • ead-ce-lpe_image_rgb_96dpi_500x500モーダルで開く
  • モーダルで開く
  • PCI bus (5V / 32bit 33MHz) or PCI Express (x1) bus slot can be added from a PCI Express bus slot of a PC
  • It is possible to select expansion chassis according to the application
  • Power of the expansion chassis can be turned on/off in conjunction with the computer where this board mounted
  • Support for both of Low Profile and standard size slots (interchangeable with a bundled bracket)
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description Certification
EAD-DE-LPE Expansion Adapter for PCI Express Slot
  • FCC compliant
  • VCCI

Options

Expansion box

Item Item Name
ECH-PCI-DE-F2B Bus extension type PCI bus expansion chassis (long x 2)
ECH-PCI-DE-F4B Bus extension type PCI bus expansion chassis (long x 4)
ECH-PCI-DE-H13A Bus extension type PCI bus expansion chassis (short x 13, power supply built-in)
ECH-PCI-DE-H2B Bus extension type PCI bus expansion chassis (short x 2)
ECH-PCI-DE-H2C Bus extension type PCI bus expansion chassis (short x 2)
ECH-PCI-DE-H4B Bus extension type PCI bus expansion chassis (short x 4)
ECH-PCI-DE-H4D Cable type PCI Express bus expansion chassis (short x 4)
ECH-PE-DE-H2B PCI Express bus expansion chassis (short x 2)

Cable

Item Item Name
CB-DE Cable for PCI Express

Extended Warranty Service

Item Item Name
ESP-F5 Extended warranty service package (5 years service course) (Japan only)
ESP-S1 Extended warranty service package (Extension one year) (Japan only)
