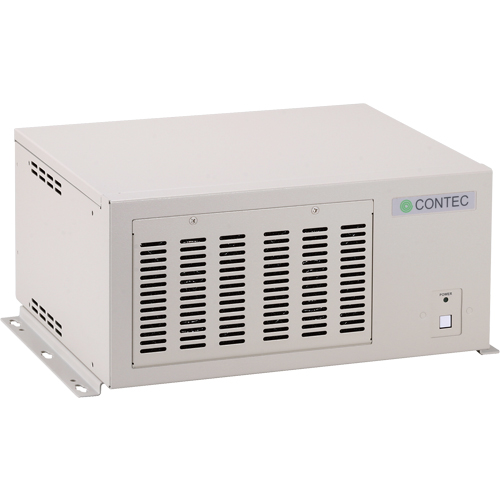

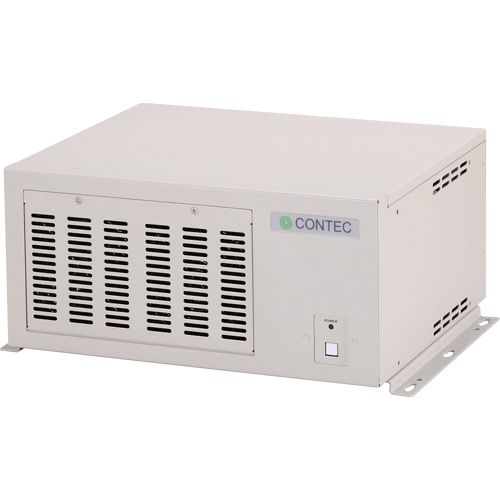

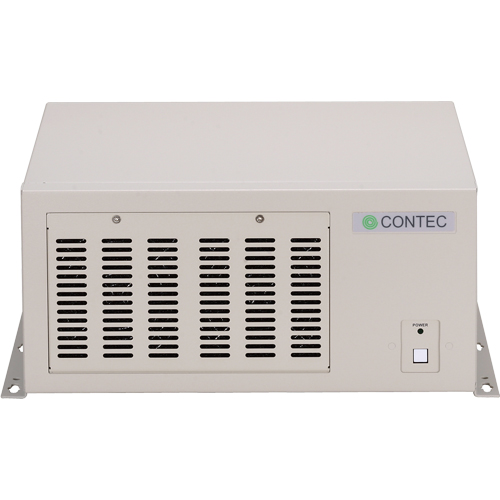

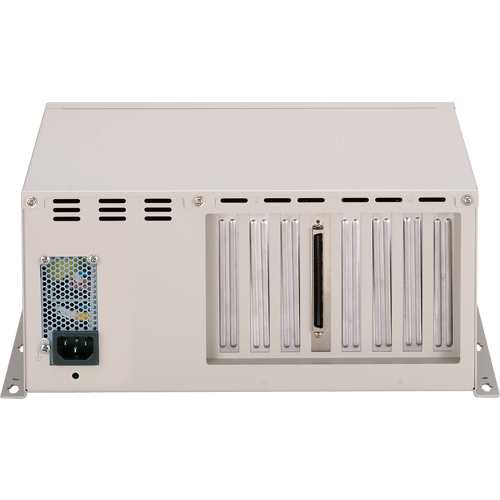

ECH-PCI-BE2-H7A PCI Bus Expansion Chassis Short size, 7-Slots

Discontinued

Standard Warranty1 yr
Extended WarrantyAvailable

End of Repair Service: 2029/09/14

Check a compatible replacement

* The end of repair date may change depending on the situation.

PCI (5V/32bit 33MHz) bus slots can be added to your PC.
PCI bus boards can be connected.
ON/OFF control of the chassis can be linked to that of your PC.
Steel chassis with cooling fan
Rack-mountable

*
For details about an extended warranty, please contact us.

Overview / Features

This product is an expansion chassis that adds PCI bus expansion slots to a PC by being connected to the PC via an optional expansion adapter.

PCI (5V/32bit 33MHz) bus slots can be added to your PC.
- PCI (5V/32bit 33MHz) bus slots can be added to your PC. ECH-PCI-BE2- H7A: PCI bus slots (x 7) can be added. This expansion chassis is connected to a PC using an optional expansion adapter.
PCI bus boards can be connected.
- You can connect short-type [176.5 (L) x 107 (H) mm] PCI bus boards. ECH-PCI-BE2-H7A : Accepting short-size PCI bus boards (x7).
ON/OFF control of the chassis can be linked to that of your PC.
- You can link the ON/OFF control of the expansion chassis to that of your PC.
Steel chassis with cooling fan
- Steel chassis with cooling fan suitable for use in fields
Rack-mountable
- Rack-mountable with supplied brackets
