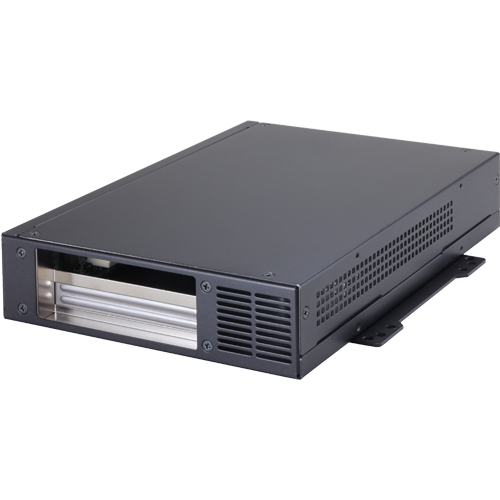

ECH-PCI-DE-H2C Bus extension type PCI bus expansion chassis (short x 2)

  • Standard Warranty1 yr
  • Extended WarrantyAvailable
  • モーダルで開く
  • PCI bus (5V/32bit 33MHz) slots can be added to your PC.
  • Short-type PCI bus cards can be connected.
  • A wide range of power supplies (10.8 to 31.2VDC) supported
  • The cooler fan can be installed according to the usage.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description Certification
ECH-PCI-DE-H2C Bus extension type PCI bus expansion chassis (short x 2)
  • CE marking
  • FCC compliant
  • VCCI

Options

Bus adapter

Item Item Name
EAD-DE-LPE Expansion Adapter for PCI Express Slot

Power Supply / AC Adapter

Item Item Name
IPC-ACAP12-04A AC Adapter (Input:100-240VAC, Output:12VDC 4A)
PWA-65AWD1 AC Adapter(12VDC)

Other Accessories

Item Item Name
FAN0412 Cooling fan (for ECH-PCI-CE-H2C and ECH-PCI-DE-H2C)
