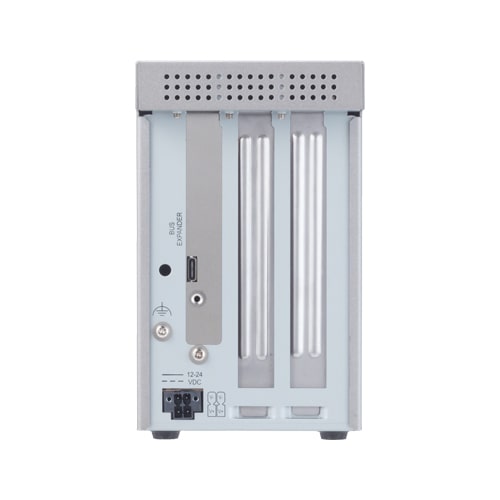

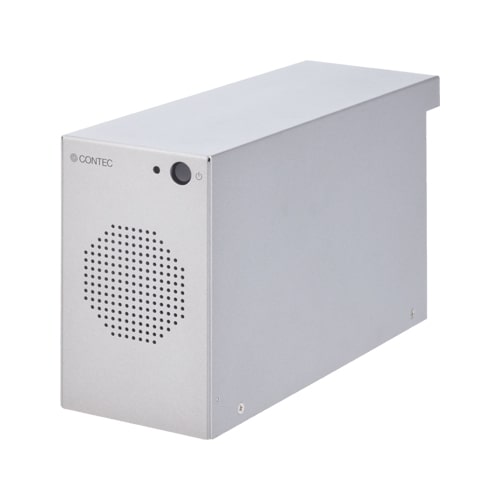

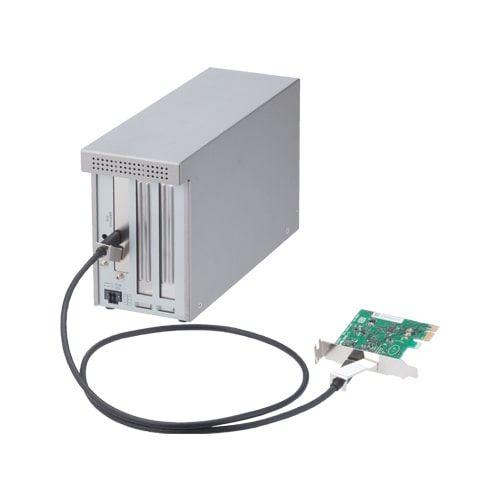

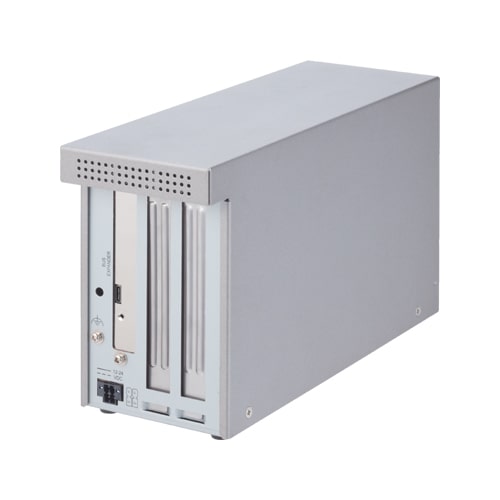

ECH-PCI-DE2-H2B PCI Express Cable type PCI bus expansion Chassis (Short x 2)

PCI bus (5V/32bit 33MHz) slots can be added to your PC.
PCI bus cards can be connected
Power-ON/OFF control of the expansion chassis can be linked to that of your PC
Steel chassis with cooling fan
The compact design of the cabinet with a built-in cooling fan enables space-saving system construction.
A wide range of power supplies (10.8 to 31.2VDC) supported

Ordering Information

Model	Description	Certification
ECH-PCI-DE2-H2B	PCI Express Cable Type PCI bus Expansion Chassis (Short x 2)

Item	Item Name
EAD-DE-LPE	Expansion Adapter for PCI Express Slot

Item	Item Name
PWA-160AWD2	Switching AC adapter(24VDC 6.6A)
