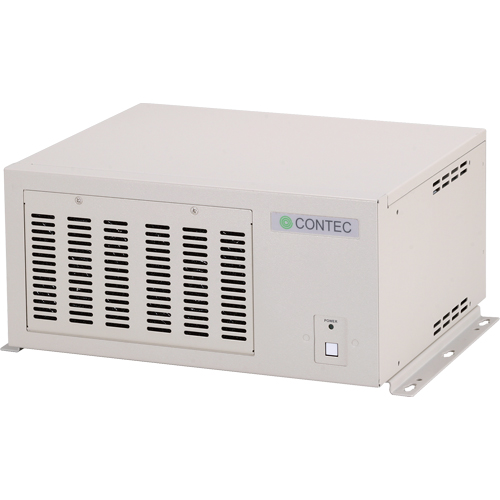

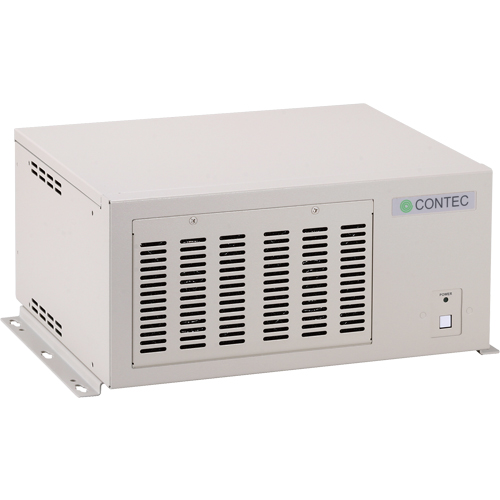

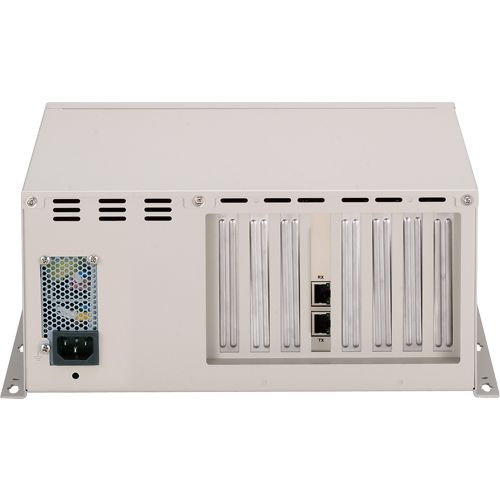

ECH-PCI-SF2-H7A PCI Bus Expansion Chassis Short size, 7Slots

Discontinued

Standard Warranty1 yr
Extended WarrantyAvailable

End of Repair Service: 2025/05/20

PCI (5V/32bit 33MHz) bus slots can be added to your PC.
PCI bus boards can be connected.
ON/OFF control of the chassis can be linked to that of your PC.
Steel chassis with cooling fan
Rack-mountable

*
For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model	Description	Certification
ECH-PCI-SF2-H7A [Discontinued]	[End of Repair Service : 28 March, 2025] PCI Bus Expansion Chassis Short size, 7Slots

Options

Bus adapter

Item	Item Name
EAD(LPCI)SF	StarFabric conformity PCI Bus Expansion Adapter for Low Profile PCI PC-Slot
EAD-SF-LPE	StarFabric conformity PCI Bus Expansion Adapter for Low Profile PCI Express PC-Slot

Power Supply / AC Adapter

Item	Item Name
POW150X	Power Supply for Exchange of FA-PAC(PCI)F7

Other Accessories

Item	Item Name
FAN0925	Cooling fan (for FA-PAC(PC)F14DR / H12RF)

Extended Warranty Service

Item	Item Name
ESP-F5	Extended warranty service package (5 years service course) (Japan only)
ESP-S1	Extended warranty service package (Extension one year) (Japan only)
