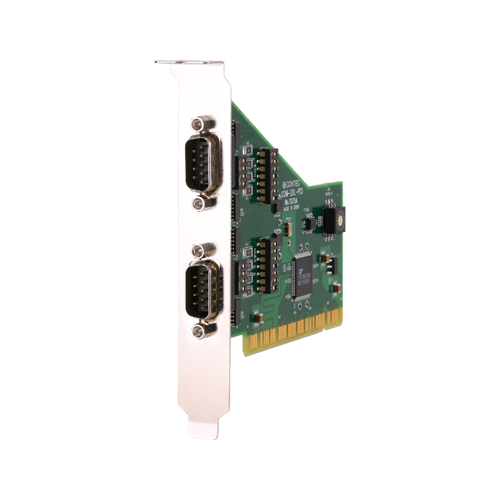

COM-2DL-PCI Serial Communication PCI Card RS-422A/485 2ch

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

This PCI card was designed for extending RS-422A/485 compatible serial communication functionality on your PC.
COM-2DL-PCI has two RS-422A/485 communication ports.
With a 64 byte built-in FIFO buffer for transmission and reception of each channel, the product supports a baud rate of up to 230,400bps. It also comes with a Windows driver, which allows cards to be used as OS-standard COM ports.

• Max. 230,400bps RS-422A/485 Serial Communication

  • It has two RS-422A/485-standard serial ports. Baud rates from 15 to 230,400 bps can be set.
• Cards can be used as standard serial ports when operating in a Windows® environment

  • Comes with a driver library that allows the cards to be used under Windows in the same way as COM ports on the PC.
• 16 cards (max) can be installed with an access range from COM1 to COM256.

  • Up to 16 cards can be mounted on a single PC. COM1 - COM256 can be set using the device manager.
• Each channel is equipped with separate 64-byte FIFO buffers for transmit and receive.

  • Employed a buffer memory 64-byte dedicated to transmission and 64-byte for each channel.
• Cables and connectors are available as optional.

  • 9-pin D-SUB connectors (male or female type) for creating your own cables are available as optional.
