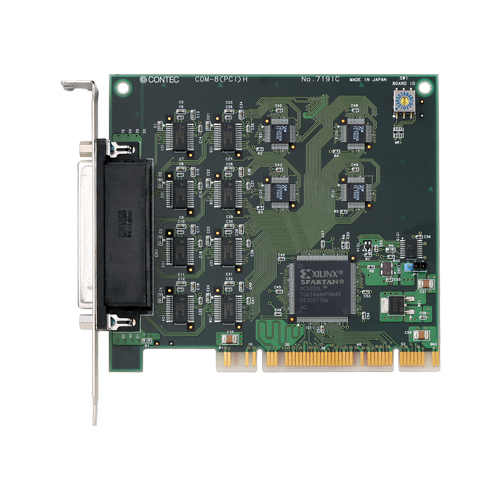

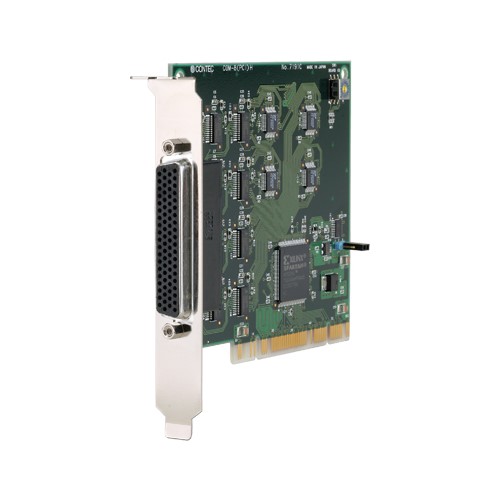

COM-8(PCI)H Serial Communication PCI Card RS-232C 8ch

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Maximum communication speed = 921,600bps.
  • The baud rate can be set independently for each channel, by software.
  • Each channel is equipped with separate 128-byte FIFO buffers for transmit and receive.
  • *
    For details about an extended warranty, please contact us.

Overview / Features

It is the interface card of the PCI bus conformity which expands the RS-232C serial communication port of eight channels in a personal computer. UART 162850 which has the FIFO buffer of 128 bytes of 128 bytes of transmission / reception in each channel is carried. It can be used as a Windows and standard COM port for Linux by the setup by the attached standard COM driver. A program is also possible at a Win32 API communication function or MSComm. * 9 pin / 25 pin D-SUB connector distribution cable option

  • Maximum communication speed = 921,600bps.
  • The baud rate can be set independently for each channel, by software.
  • Each channel is equipped with separate 128-byte FIFO buffers for transmit and receive.
